SHIBAURA KRTC-11A Grinders, Surface, Rotary Used

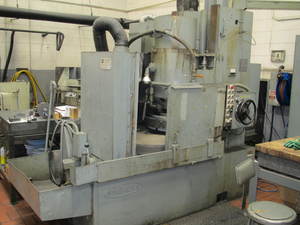

SHIBAURA 42" ROTARY SURFACE GRINDING MACHINE MODEL KRTC-11A

SERIAL NO. 480 BUILT 1980, REBUILT 2000 STOCK NO. 6210

FOR A VIDEO OF THIS MACHINE: http://www.youtube.com/watch?v=EQA4r2RHhto

CATALOG SPECIFICATIONS:
DIAMETER OF MAGNETIC CHUCK: 42"
GRINDING WHEEL DIAMETER: 22"
MAXIMUM DISTANCE UNDER NEW WHEEL: 24"
TABLE SPEEDS: (8) 8 - 30 RPM
WHEEL SPEED: 700 RPM
HAND AND POWER ELEVATION TO WHEEL HEAD
AUTOMATIC DOWNFEED TO WHEEL HEAD: .004 - .012 IPM

EQUIPPED WITH:
SEGMENTED WHEEL MOUNT
NEUTROFIER WITH MAGNETIC CHUCK CONTROL
50 HP SPINDLE DRIVE MOTOR
WHEEL DRESSER
LUBRICATION SYSTEM
COOLANT SYSTEM
MISC. SPLASH GUARDS

MACHINE MAY BE INSPECTED UNDER POWER
