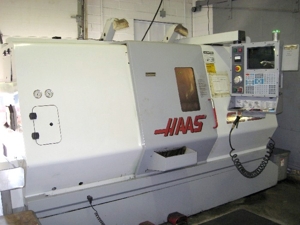

HAAS SL-30T CNC 车床 旧产品

DATE OF MANUFACTURE 2001
MAX. SWING OVER FRONT APRON 30"
SWING OVER CROSS SLIDE 14.5"
MAXIMUM TURNING DIAMETER 14.5"
MAXIMUM TURNING LENGTH 34"
X AXIS TRAVEL 11.3"
Z AXIS TRAVEL 34"
RAPID TRAVERSE RATE X & Z AXES 710 IPM
SPINDLE BORE 3.0"
MAXIMUM BAR CAPACITY 2.56"
SPINDLE SPEEDS 3,400 RPM
SPINDLE MOTOR (2 SPEED GEARED) 30 HP
TURRET CAPACITY (BOLT-ON STYLE) 12 STATION
TAILSTOCK QUILL TAPER MT #4
TAILSTOCK BODY TRAVEL 33.5"
APPROXIMATE DIMENSIONS 147" x 73" x 74"
MACHINE WEIGHT (APPROXIMATE) 16,000 LBS

Equipped With:
HAAS DUAL PROCESSOR CNC CONTROL W/12" CRT SCREEN,
RS-232C PORT INTERFACE FOR DNC OPERATION,
10" 3-JAW HYDRAULIC CHUCK WITH JAWS,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
AUTOMATIC TOOL PRESETTER ARM, 3.5" FLOPPY DRIVE,
HIGH TORQUE GEAR BOX, CHIP REMOVAL AUGER,
PROGRAMMABLE TAILSTOCK, SPINDLE ORIENTATION,
PARTS CATCHER, QUICK CODE, BRUSHLESS SERVOS,
1 MEG MEMORY UPGRADE,
STANDARD COOLANT SYSTEM, ALL AVAILABLE MANUALS --- www.mwmachinery.com
