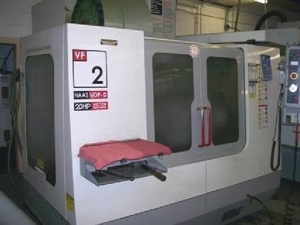

HAAS VF-2D 立式加工中心 旧产品

HAAS VF-2 D CNC MILL, 30 x 16 x 20, 20HP 7500 RPM, SIDEMOUNT ATC, 4TH AXIS PREWIRE, PAKG D, '03 (4542)
DATE OF MANUFACTURE 5/2003
TABLE SIZE 36" x 14"
MAXIMUM TABLE LOAD 3,000 LBS
SPINDLE NOSE TO TABLE TOP 4" - 24"
X AXIS TRAVEL 30"
Y AXIS TRAVEL 16"
Z AXIS TRAVEL 20"
RAPID TRAVERSE RATE X, Y & Z AXES 1000 IPM
CUTTING FEED RATE 0.1 - 600 IPM
SPINDLE TAPER CAT 40
SPINDLE SPEEDS 0 - 7,500 RPM
SPINDLE MOTOR 20 HP
TOOL CHANGER CAPACITY 24+1 STATIONS (SIDE MOUNT)
MAXIMUM TOOL WEIGHT 12 LBS
MACHINE WEIGHT, APPROX 8,500 LBS
APPROXIMATE DIMENSIONS 110" x 93" x 105"

Equipped With:
HAAS CNC CONTROL WITH 12" CRT & RS-232C PORT INTERFACE,
SIDEMOUNT TOOL CHANGER, COORDINATE ROTATION & SCALING,
PROGRAMMABLE COOLANT NOZZLE, 3.5" FLOPPY DISK DRIVE,
REMOTE JOG HANDLE, USER DEFINEABLE MACROS, SPINDLE ORIENTATION,
PRE-WIRED FOR 4TH AXIS ROTARY (NO ROTARY INCLUDED),
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING), 1MB MEMORY,
STANDARD COOLANT SYSTEM, CHIP REMOVAL AUGER,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
