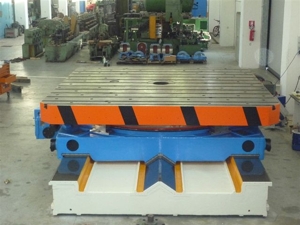

Rotary Table VIVARO TR80
Heavy duty 80 Ton. rotary table
totally revamped CE 2009
Dimension of table : 3.700 x 3.700 mm
weight capacity : 80 Ton.
x-axis travel length is 2.000 mm
length of slides 5.900 mm
Continuous position controlled through Encoder 18000 pulses (new Encoder)
Rotation blocking through 4 oleodynamic pliers (news)
Translation mm 2000: position controlled through centesimal row 2000 mm (new)
Translation blocking through 4 levers handled by oleodynamic cylinders (news)
Handling translation with round rack and hydrostatic bearing with control mechanical valves (news)
Feed selector – translation and rotation – manual entry with inverter for the regulation of preferred positioning (new).
Control pulpit completed of function keys, display device 2 axis, potentiometer of speed regulation.
Oleodynamic system – motor, pumps, electronically controlled valve, pipes (new)
Electric system (new)
Display device GIVI 2 axis (new)
