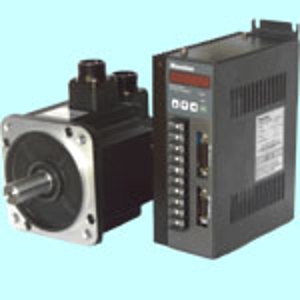

CNCmakers CT SERIES Servo Motores Nuevo

AC servo motor driver(amplifier) features:
With DSP and CPLD, high integration and reliability
Optimized PID control arithmetic to control motor, increased the veracity and celerity of position and speed
Mitsubishi IPM, perfect protection, alarm code display, alarm signal output
Total digital control, user setup of parameters and different display content

Control mode: 1-Position control 2-Speed control 3-Speed dry run 4-JOG run

Control input: 1-servo enable 2-alarm release 3-CCW drive forbid 4-CW drive forbid 5-warp counter cleanup/ speed select 1 6-dictate pulse forbid/speed select 2 7-CCW torque limit 8-CW torque limit
Input mode: 1-pulse + direction 2-CCW pulse/ CW pulse
3-2 phases A/B quadrature pulse

Control output: 1-servo prepared output 2-servo alarm output 3-positioned output/ speeded output

AC servo motor features:
High performance rare earth permanent magnet material, high power, large load;
Excellent reverse potential sine, sine wave current drive and excellent low speed performance;
Motor inertia meeting machine feed drive;
F level insulation material to extend motor life;
Imported feedback components, original imported low-noise motor bearing to reduce vibration and noise;
Full airproof and high reliability to meet industry environment;
Optimum matching with our AC servo drive unit to realize optimum servo performance.
