CNCMAKERS DA98B Servo Motores Nuevo

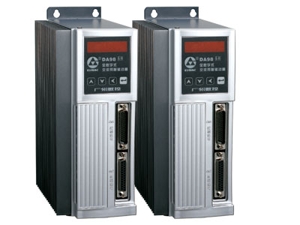

AC servo motor drivers(amplifier) includes: DA98A, DA98B, DA98D, DAT2030C, DAT2050C, DAT2075C from CNCmakers Limited.

1-The exclusive DSP and intellective IPM module for the motor control with high integration and excellent reliability.
2-Pulse command and analog command input, position feedback output and many I/O interfaces defined by customer to match with all kind of open-loop or closed-loop controller to realize the position open-loop or speed closed-loop controller.
3-Integrated the single-axis control function without the command control unit to realize the automatically completing the single-axis cycle motion and I/O control with the high cost-performance, and widely applied to the automation field.
4-Simple and active single-axis command system to avoid the mistake the programming phrasing.

Each unit includs 1 AC Servo Motor and 1 Motor Driver.
DA98B-15-130SJT-M100B
Incl. 1500W, 10NM, 1500rpm, 6.0A, 130mm support AC Servo Motor
DA98B-25-130SJT-M100D
Incl. 2500W, 10NM, 2500rpm, 10A, 130mm support AC Servo Motor
DA98B-23-130SJT-M150B
Incl. 2300W, 15NM, 1500rpm, 8.5A, 130mm support AC Servo Motor
DA98B-39-130SJT-M150D
Incl. 3900W, 15NM, 2500rpm, 14.5A, 130mm support AC Servo Motor
DA98B-27-175SJT-M180B
Incl. 2700W, 18NM, 1500rpm, 16.5A, 175mm support AC Servo Motor
DA98B-45-175SJT-M180D
Incl. 4500W, 18NM, 2500rpm, 18A, 175mm support AC Servo Motor
DA98B-33-175SJT-M220B
Incl. 3300W, 22NM, 1500rpm, 19A, 175mm support AC Servo Motor
DA98B-55-175SJT-M220D
Incl. 5500W, 22NM, 2500rpm, 22A, 175mm support AC Servo Motor
DA98B-45-175SJT-M300B
Incl. 4500W, 30NM, 1500rpm, 26A, 175mm support AC Servo Motor
DA98B-75-175SJT-M300D
Incl. 7500W, 30NM, 2500rpm, 30A, 175mm support AC Servo Motor
BRAKE FUNCTION* Optional, For AC servo motors Torque>15NM
BRAKE FUNCTION* Optional, For AC servo motors Torque less or equal to 15NM
