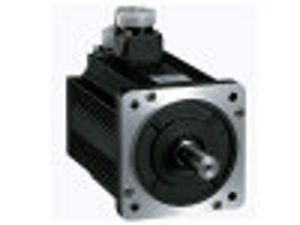

CNCMAKERS SJT AC SERVO MOTOR Servo Motores Nuevo

SJT AC servo motor from CNCmakers Limited. SJT AC Servo Motor
1-Impressive outline and compact configuration, with totally enclosed aluminum housing applied
2-Low electromagnetic noise, steady running and high efficiency, with optimal electromagnetic design applied
3-Excellent low speed characteristic and strong overload capability, with high performance rare-earth permanent-magnet material employed
4-Employed with high speed, high precision photoelectric encoder, which can be used for high precision speed and position control if matched with a high performance driver
5-Reliable use under the -15 ~ 40 degrees ambient temperatures as well as dust and oil fog environment, with F insulation degree and IP65 protection degree applied
6-Reliable stability, little vibration and low noise of motor run within a high speed range, with imported high precision bearings and high precision rotor dynamic balance processing employed
7-Rapid response capability by large torque inertia ratio
8-High performance-cost ratio with shock-resistance and long life
DA98-SJT AC Servo Motor & Driver Unit
1 DA98B-05-80SJT-M024C Incl. 0.5KW/2.4Nm/2000rpm/3.0A/80 support AC Servo Motor[20A Module]

2 DA98B-08-80SJT-M024E Incl. 0.8KW/2.4Nm/3000rpm/4.8A/80 support AC Servo Motor[30A Module]

3 DA98B-06-80SJT-M032C Incl. 0.6KW/3.2Nm/2000rpm/5A/80 support AC Servo Motor[30A Module]

4 DA98B-10-80SJT-M032E Incl. 1.0KW/3.2Nm/3000rpm/6.2A/80 support AC Servo Motor[30A Module]

5 DA98B-10-110SJT-M040D Incl. 1.0KW/4Nm/2500rpm/4.5A/110 support AC Servo Motor[20A Module]

6 DA98B-15-110SJT-M060D Incl. 1.5KW/6Nm/2500rpm/7.0A/110 support AC Servo Motor[30A Module]

7 DA98B-10-130SJT-M040D Incl. 1.0KW/4Nm/2500rpm/4.0A/130 support AC Servo Motor[20A Module]

8 DA98B-13-130SJT-M050D Incl. 1.3KW/5Nm/2500rpm/5.0A/130 support AC Servo Motor[30A Module]

9 DA98B-15-130SJT-M060D Incl. 1.5KW/6Nm/2500rpm/6.0A/130 support AC Servo Motor[30A Module]

10 DA98B-20-130SJT-M075D Incl. 2.0KW/7.5Nm/2500rpm/7.0A/130 support AC Servo Motor[30A Module]

11 DA98B-15-130SJT-M100B Incl. 1.5KW/10Nm/1500rpm/6.0A/130 support AC Servo Motor[30A Module]

12 DA98B-25-130SJT-M100D Incl. 2.5KW/10Nm/2500rpm/10A/130 support AC Servo Motor[30A Module]

13 DA98B-23-130SJT-M150B Incl. 2.3KW/15Nm/1500rpm/8.5A/130 support AC Servo Motor[30A Module]

14 DA98B-39A-130SJT-M150D Incl. 3.9KW/15Nm/2500rpm/14.5A/130 support AC Servo Motor[50A Module]

15 DA98B-28A-175SJT-M180B Incl. 2.8kW/18Nm/1500rpm/15A/175 support AC Servo Motor[50A Module]

16 DA98B-38A-175SJT-M180D Incl. 3.8kW/18Nm/2500rpm/16.5A/175 support AC Servo Motor[50A Module]

17 DA01B-35-175SJT-M220B Incl. 3.5kW/22Nm/1500rpm/17.5A/175 support AC Servo Motor[75A Module]

18 DA01B-47-175SJT-M220D Incl. 4.7kW/22Nm/2500rpm/19A/175 support AC Servo Motor[75A Module]

19 DA01B-38-175SJT-M300B Incl. 3.8kW/30Nm/1500rpm/19A/175 support AC Servo Motor[75A Module]

20 DA01B-60-175SJT-M300D Incl. 6.0kW/30Nm/2500rpm/27.5A/175 support AC Servo Motor[75A Module]

BRAKE FUNCTION* Optional, For AC servo motors Torque>15NM
BRAKE FUNCTION** Optional, For AC servo motors Torque<=15NM
