INNOVATIVE LASER TECHNOLOGIES, INC. 109253 Soldadoras Láser Usado

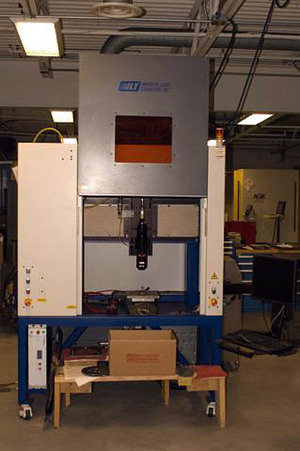

ILT 3000 CDRH Class I Workstation
60 I" wide base with X & Z axes mounted overhead
on the bidge & pneumatic vertical front enlosure door.
X axis 24" Aerotech Model ATS5000
Y axis 12" Aerotech Model ATS165
Z axis 12" Aerotech Model ATS165
All axis with brushless servo motor & inline motor mount
and brake
Supply of an IPG YLR-300-SM-WC watt CW, single mode,
water cooled, Fiber laser. This includes a 5M Fiber Optic
Cable and F83 collimator.
Laser mechanisms beam delivery train with quick change cartidge
mounted focusing lens & protection cover slide assemblies
including the following focusing lenses: 150mm FL Lens & 100mm FL Lens
ILT's manual flow control shield gas delivery, progamable on/off
ILT's coaxial nozzle for use with the Laser Mechanisms focusing
assembly and 2 lenses.
