Controls: PLC SIEMENS S5 115 U

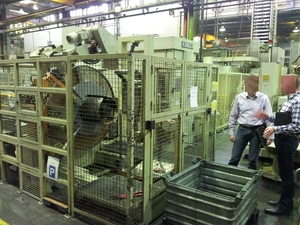

Decoiler
design single reel
sheet width max 500 mm
max. weight of coil 3 to
max. diameter of coil 1500 mm
min. internal diameter of coil 460 mm
Leveller Unit
sheet width max 500 mm
sheet thickness max 10 mm
sheet thickness (min) 0.5 mm
straightening cross section 5000 mm²
number of leveller rolls 21
diameter of leveller rolls 50 mm
feed velocity min. 0 m/min
feed velocity max. 20 m/min
loop controls yes
Technical description
Working direction left-right
REEL STAND
hydraulic coil chair with cross movement of coil reel
auxiliary rewinding drive
STRAIGHTENER
fast change cassette system
electric roller adjustment with DRO
support rollers
band insert system
