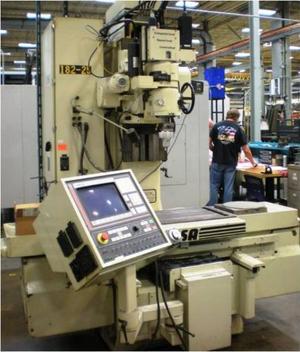

NASA-MOORE AGS-3 CNC Rectificadoras de Escantillones (Plantillas) Usado

NASA FOSDICK MODEL AGS-3 4-AXIS CNC PRECISION JIG GRINDER

General Specifications
Table size 22" x 42"
Longitudinal table travel 42"
Cross table travel 22"
Table top to wheel collet 1" To 27 1/2"
Head travel on column 23"
Spindle to column ways 18 1/2"
Spindle to column throat 25 1/4"
Infinitely variable spindle speeds 40 To 250 RPM
Infinitely variable spindle speeds 2 To 120 SPM
Grinding Spindle stroke 3 5/8"
Grinding capacity:
Grinding wheels 3/16" To 5"
Diamond mandrels 1/64" To 3/16"
Main spindle slide adjustment 1 1/2 Deg.
Either way, 3 Deg., Included angle
Radial off-set of grinding spindle:
(A) From center to 1 1/8" off center by rough adj.
(B) While running .001" Adj. for distance of .100"
Anywhere in the 1 1/8" Range
Approx. floor space required 125" x 153"
36" L-R x 12" F-B x 84" High (cabinet) Machine dimensions 92"x116"x112"H Weight 19,500 Lbs

Motor Specifications
Not Available

Equipped With
Fagor 8030 CNC control
X,Y,C,U Axis, Contouring capabilities
Digital readout
(1) Grinding spindle mounted on machine
Feed rates 20 IPM
Note: Machine recently released from Aerospace Comapny and appears
to be in excellent condition
See Video: http://www.youtube.com/watch?v=43ROeYZQPV0

Serial Number
N/A Year
1995 Location
PROSPECT HTS., IL
