QUESTTASIA ROBOT 300 Soldadoras Láser Nuevo

Brief Introduction

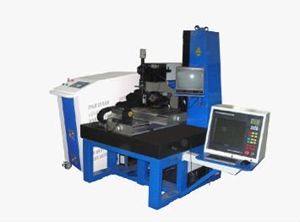

The ROBOT300 Laser welder for mold is especially designed for the mould industry, and it is applied

to repair of precision moulds, for example, digital products, handsets, toys, autos, and motors moul

d making and modeling. The mould repair can make full use of the original moulds, which will greatly

reduce the production cost, and improve the working efficiency. The technology can also be applied

to modification of mould design or size, thus reducing the development cycle of the product.

High light

The operating principle for the laser mold welder is as follows: the melting and jointing technology

centralized by laser energy effectively handles welding and repair of fine parts, thus compensating

for the deficiency of the traditional argon-arc welding technique in repairing and welding fine surfa

ces. By avoiding thermal strain and postprocessing, it greatly saves the production cycle of moulds.

The product is customized for the moulding industry by introducing German technology, with uniqu

e structural design, and applicable to repair of large, medium and small-sized moulds.
1. The ceramic focusing cavity is corrosion and high temperature resistant, and the service life is 8

to 10 years, while the service life of the xenon lamp is over 8 million times.
2. World-leading automatic light shielding system is employed to remove stimulation of light on eye

s during operation.
3. The laser head can be turned for 360 degrees, and the whole optical path can be turned 360 de

grees too, up and down by motor,front and after adjustable, especially suitable for repair of large,

medium and small-sized moulds.
4. Intelligent remote controllers are employed for adjusting parameters, with simple and convenien

t operation.
5. The workbench can be adjusted up and down with three-dimensional moving.
6. The light spots can be adjusted in size.

Typical Application

It is applicable to metallic materials such as cold working high alloy steel, hot forging high alloy ste

el, nickel tool steel, high grade steel, copper alloy, beryllium steel, and high flexibility aluminum allo

y. The remote controller or the touch operation panel can be used to select the laser output power

, frequency, pulse width and other parameters. The moving speed of the workbench can be set to

manipulate the workbench moving, so that the welding parameters match the welding requirement

s, and thus producing optimal effect of smooth welding joints and points.

Warranty Period

One year from the date the machine arrives the destination Except consumable part of the lamp an

d damage artificially. The seller is responsible for offer free fittings in the warranty period (the buye

r has to send the damaged fitting to seller.)

The artificial damage in the warranty period and damage after warranty period, the seller offers pa

id service. If the customer needs the engineer to supply the service oversea, all the expends will b

e paid by the customer.
