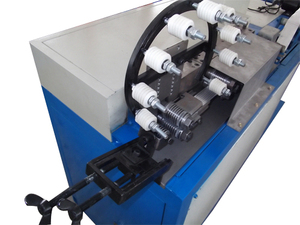

Automatic spiral flexible aluminum foil duct machine
ATM-A300A Technical Terms:(9-corrugation ridge)
Forming diameter ￠80--￠300mm
Pipe length 500--2000mm(no limit,it can make any length)
Thickness 0.05--0.15mm(aluminum)0.035--0.07mm(stainless steel)
Strip width 60mm
Speed 1--100m/min
System control TAIWAN MT6070iH WEINVIEW&PLC
Main power 1.5kw,220v,single phase,50HZ
Weight 450kg
Overall size 1860*1150*1330mm
For material aluminum foil
Dimensions of pipe compress machine 4000×600×1400mm
Weight of pipe compress 200kg
Main Features:
1.Produced by full-automatic.
2.Special moulds for various tube diameters,very easy to change and adjust.
3.Automatic cut to length,any length can be cut according to customer's requirement.
4.High speed synch flying cutting system.
Our company:
Our main products:spiral tube forming machine,flexible duct forming machine,auto roof forming machine,riveting machine,Pittsburgh seam lock machine.Hydraulic section steel bending machine,metal sheet flange forming machine,TDF hydraulic folder,auto cutting to length line,pipe bending machine,FN seam welder,notching and shearing machine.
Our certificate:
1.CE
2.ISO901:2000
Please contant us at any time available for you,if you want for more details.
Add:Building D,299 Tangming Road,Lita Hui,Songjiang District,Shanghai,China
Fax:+86-21-57841819
Tel:+86-21-57842040
Phone:+86-13817091187
