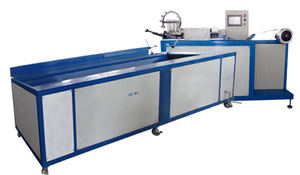

Full-Automatic Spiral Aluminum Pipe Maker ATM-300F
ATM-300F Technical Terms:(7-corrugation ridge or 9-corrugation ridge)
Forming diameter ￠80--￠350mm
Pipe length 500-6000mm(no limit,it can make any length)
Thickness 0.050—0.15mm(aluminum), 0.035—0.10mm(stainless steel)
Strip width 60mm
Speed 1--70m/min(it can be adjusted)
System control with LCD screen,transducer and PLC control,Automatic cut the pipe to length, And then Automatic compress the pipe to length.
Main power 1.5KW, 220volt, single phase, 50 Hz
Weight 1000kg
Overall size 1860×1150×1330mm and 5000×700×1000mm
for material aluminum foil, copper foil, stainless steel , galvanization steel
Main Features:
1.Produced by full-automatic.
2.Special moulds for various tube diameters,very easy to change and adjust.
3.Automatic cut to length,any length can be cut according to customer's requirement.
4.High speed synch flying cutting system.
Our company:
Our main products:spiral tube forming machine,flexible duct forming machine,auto roof forming machine,riveting machine,Pittsburgh seam lock machine.Hydraulic section steel bending machine,metal sheet flange forming machine,TDF hydraulic folder,auto cutting to length line,pipe bending machine,FN seam welder,notching and shearing machine.
Our certificate:
1.CE
2.ISO901:2000
Please contant us at any time available for you,if you want for more details.
Add:Building D,299 Tangming Road,Lita Hui,Songjiang District,Shanghai,China
Fax:+86-21-57841819
Tel:+86-21-57842040
Phone:+86-13817091187
