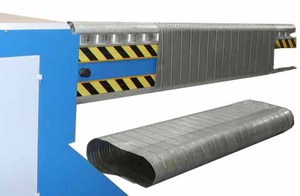

Oval Tube forming machine
1 produced by full-automatic, clean and dustless
2 the leakage rate is extremely low. only 0.02
3 the lock seam is tight , the inner lock seam is smooth and leak less; the lock seam also has the reinforcement function
4 the structure is of high intensity, good rigidity, avoiding second noises
5 longer continuous length; good coherent in tube size, easy &convenient for noises
6small occupying space in height , suitable for the buildings of insufficient layer height
Main technical data
Max Sheet Thickness 1.2mm
Max. Tube Length 3100mm
Easier to install 330~1500mm
Size of flat oval 150/400mm~500/1550mm
Motor Power 22kW, 380V, 3 Phase, 50Hz
Dimension 5500 x 1200 x 1300mm
weight 3300kg
Our company:
Our main products:spiral tube forming machine,flexible duct forming machine,auto roof forming machine,riveting machine,Pittsburgh seam lock machine.Hydraulic section steel bending machine,metal sheet flange forming machine,TDF hydraulic folder,auto cutting to length line,pipe bending machine,FN seam welder,notching and shearing machine.
Our certificate:
1.CE
2.ISO901:2000
