SHANGHAI METAL FORMING ATM-600A Maquinaria para Tubos (Conformado) Nuevo

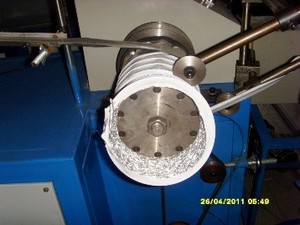

Aluminum Foil wire round Flexible duct machine ATM-600A

Main Technical Data　
Diameter ￠80－￠600mm
Roll Round Length 1－10m
Thickness PET+ Aluminum foil　0.25－0.35mm width　2.5－5cm
Steel 　￠0.8－￠1.5mm
Dimensions Thermostat　length1.8×width1×height1.8m
Main motor　length1.5×width1×height:1m
Weight 1200KG
Power 3KW
Control Temperature 40℃－120℃
Electric power 3KW

Our company:
Our main products:spiral tube forming machine,flexible duct forming machine,auto roof forming machine,riveting machine,Pittsburgh seam lock machine.Hydraulic section steel bending machine,metal sheet flange forming machine,TDF hydraulic folder,auto cutting to length line,pipe bending machine,FN seam welder,notching and shearing machine.

Our certificate:
1.CE
2.ISO901:2000
