TEHAG DB6000H Posicionadores para Soldadura Usado

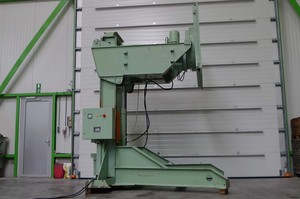

Welding positioner TEHAG 6.000

- Make. TEHAC - Germany
- Typ. DB 6000
- Age. 70 er
- Mach.No. 5336

- Centre of Gravity: 6 Tonnes @ 800 mm

- Eccentricity : 6 Tonnes @ 250 mm

- Table size. 1.500 x 1.500 mm

- Height Y travel ca. 1000 – 1500 mm

- Table rot. Speeds. 0,0125 till 2,50 Rpm.
- Max. Angle: 0 – 140 Gr.

- Rotation motor. .. kW Dc.
- Tilt motor. .. kW Ac.

- Dimensions:
- Overall length: 2.500
- Overall Width: 3.100
- Overall Height: 3.200

- Weight. Ca. 6.300 Kg.

- Remote controll
- Vario rotation speeds
