YANG CHEN STEEL YC-220 Cortadoras y Líneas de Corte en Tiras de Metal Nuevo

Specifications of YC-220 Slitting Machine

Machine: Hot rolled and cold rolled stainless steel coil slitting machine

MODEL: YC – 220 Slitting Machine
General Specifications of Steel Coil Slitting Machine
Type Round knife type of slitting machine.
Coil standard JIS standard
Applicable material Carbon Steel, Galvanized Steel
Applicable coil thickness 0.4 ~ 6.0 mm. (max)
Applicable coil width Max. 1,560 mm
Mother coil Coil ID Ø410mm/ Ø508mm/ Ø610mm/ Ø760mm
Coil OD Ø950 mm ~ 2,000 mm
Coil weight Max. 25 MT.
Finished coils Finished coil ID Ø508 mm
Finished coil OD Max. Ø2,000 mm
Finished coil weight Max. 25 MT.
Number of slit Thickness No of cuts No of strip
0.4 ~ 1.1 mm 26 25
1.2 ~ 1.5 mm 21 20
1.6 ~ 3.2 mm 16 15
3.2 ~ 4.0 mm 9 8
4.1~ 5.0 mm 7 6
5.1 ~ 6.0 mm 5 4
Line speed Max. 80 m/min for the thickness below 2.0 mm
Required space Approximate 12 x 34 m
Main voltage 380V / 3 Phs / 50Hz
Control voltage 220V / 3Phs / 50Hz
Pneumatic pressure 500 kPa (5 kg/cm²).
Max. hydraulic pressure 14 MPa (140 kg/cm²)
Hydraulic working pressure 10 MPa (100 kg/cm²)
Line direction -
Specifications of power source Motor power Slitter 125 HP DC motor with constant horse power
Recoiler 150 HP DC motor with constant horse power
Leveling device 60 HP 1750RPM DC motor

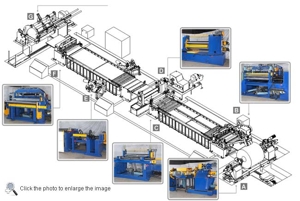

* The quoted slitting line consists of the following machines and attachment Coil car for uncoiler : 1 set
* Double cones type of uncoiler : 1 set
* Coil pressure roll device : 1 set
* Coil leveling machine : 1 set
* Shearing machine : 1 set
* Loop pit : 2 set
* Pinch roll with side guide : 1 set
* Slitter (single slitting knife stand) : 1 set
* Scrap winder : 2 set
* Tension pad : 1 set
* Recoiler including spacers : 1 set
* Coil car for recoiler : 1 set
* Electrical system
* Hydraulic unit
* Pneumatic unit
* Safety fence : 1 set
* Standard attachment
1. Slitting knives
2. Steel spacers for knives
3. PU rings for steel spacers of slitting knives
4. Separator Disc for Tension Pad
5. Separator Disc for Recoiler
6. Spacers for separator Disc (made of electric wood) for Recoiler

Model Steel Sheet Thickness (mm) Steel Sheet Width (mm) Slit Strands Coil Weight (Ton) Max Space Required (m³) Slitting Speed (Max.) Power (HP)
YC-100 0.5~1.2 200~650 4~20 5 11 x 4 x 2 100 m/min 65
YC-120 0.5~2.0 200~650 6~20 5 11 x 4 x 2 100 m/min 65
YC-160 0.5~2.0 600~1250 10~25 15 25 x 8 x 2.5 120 m/min 220
YC-180 0.5~3.2 600~1250 12~25 25 27 x 8 x 3 120 m/min 225
YC-220 1.0~4.0 600~1550 6~25 25 31 x 9 x 3 100 m/min 265
YC-250 1.2~6.0 600~1550 4~25 25 31 x 10 x 3 100 m/min 360
