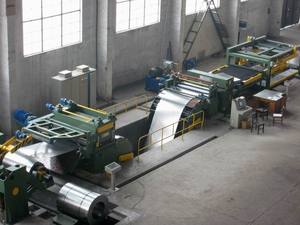

ZJ 200-2200 Cortadoras y Líneas de Corte en Tiras de Metal Nuevo

The detail specification as follows:
1. YJ-(0.3-2.5)×1600mm Cut to Length Line
Material of coils: carbon steel.
Strip thickness: 0.3~2.5mm
Strip width: 600~1600mm
Inner diameter of coils: Φ508mm, Φ610mm
Max.outer diameter of coils: Φ2000mm
Max.coil weight:20000kg
Leveling roller: Φ90
Material of leveling roller: 40Cr.
Material of cutter: 6CrW2Si
Cutting speed: (0~60) m/min, adjustable
2. YJ- (0.5-4.0)×2100mm Cut to Length Line
Material of coils: stainless steel
Strip thickness: 0.5~4.0mm
Strip width: 300~2100mm
Inner diameter of coils: Φ508mm, Φ610mm, Φ760mm
Max.outer diameter of coils: Φ2000mm
Max.coil weight: 20000kg
Leveling roller: Φ110
Material of leveling roller: 40Cr.
Material of cutter: SKD-II
Cutting speed: (0~60) m/min, adjustable
3. YJ-(3-10)×2000mm Cut to Length Line
Material of coils: carbon steel, color steel and etc.
Strip thickness: 2~8mm
Strip width: 300~1000mm
Inner diameter of coils: Φ508mm, Φ610mm, Φ760mm
Max.outer diameter of coils: Φ2000mm
Max.coil weight: 20000kg
Leveling roller: Φ140
Material of leveling roller: 40Cr.
Material of cutter: 6CrW2Si
Cutting speed: (0~60) m/min, adjustable
Technical Parameters:
Strip thickness Strip width Max coil's weight Shearing speed
0.3~2.5mm 500-2100mm 0~30T 0~60m/min
0.5~4.0mm 500-2100mm 0~30T 0~60m/min
3~10mm 500-2000mm 0~35T 0~60m/min
