KEILINGHAUS PLS 1500 HY

仕様

詳細

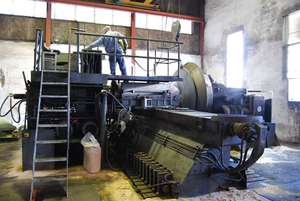

KEILINGHAUS metal spinning
Heavy Duty Forming / Dishing / Spinning

- Make : Keilinghaus Germany
- Typ : PLS 1500 HY
- Age : 60 er
- Serial.No. : 15.055.000

- Centre height o. floor : 1500
- Centre height o. bed : 750
- Blank / Workpiece Ø : 5000
- Material thickness : 10 / 20 / 30 mm
- Centre length : 3000

- Slide Y-Travel : 2800 ca. max. 280 Kn
- Slide Z-Travel : 1000 ca. max. 200 Kn

- Forming capacity depending on Ø:
- Steel 400 N/mm² : 20.0
- Alu 250 N/mm² : 28.0
- S.s. 600 N/mm² : 12.0

- Dimensions 10,000 x 10,000
- Weight ca. 60,000 Kg

- Double support

- Dished device

- Floorplate field double ! 2 x 3,300 x 1,600

Field off application of the machine; Tank ends, silo tunnels, fume hoods, rocket and prime mover components, large containers and flanged & profiled parts for tanks, vessels for the chemical and the aircraft industry.

Please Note: The above information has been obtained to the best of our ability and belief from, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
