Information
Location:
York
Pennsylvania
United States
Specifications
Table-L:
42" / 1,066.8 mm
Travel-Cross:
12" / 304.8 mm
Description

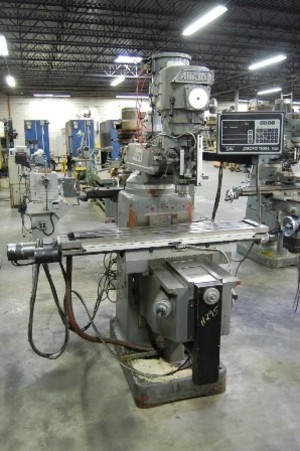

ALLIANT VERTICAL MILL with PROTO TRAK
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $6,950.00
Stock # 11295
Serial # 83030333 Model # RT-2
Table Size: 10" x 50" with (3) T-Slots
Longitudinal Travel (X Axis): 36"
Cross Travel (Y Axis): 12"
Knee Travel (Z Axis): 16"
Quill Travel: 5"
Quill Power Feeds: .0015", .003", .006" Per Revolution
Ram Travel: 12"
Ram Turret Rotation: 360 Degrees
Spindle Taper: R8
Variable Spindle Speeds: 60 to 4500 RPM
EQUIPPED WITH:
Proto Trak Plus Two Axis Control
Hard Knee Ways
Soft Scrapped Vertical Knee Ways
Manual Draw Bar
No Lube System
Missing All Handles
2 HP Main Motor
Wired for 3 Phase, 60 Cycle, 220/440 Volts
Overall Size: 72" L-R x 60" F-B x 84" High
