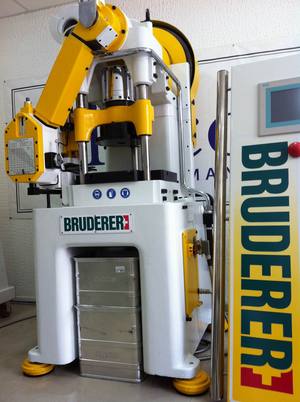

BRUDERER BSTA-30 Presses, High Speed Production Used

Bruderer BSTA 30 CNC 800 spm
Bruderer Feed BBV 190/85 feed speed up to 2000 spm
Press force max. 300 KN
CNC Complete process controll
Siemens Touch screen and Siemens PLC S7-300,
Power consumption 5.5 KW
Technical Air 8 bar
Operator’s instruction manual
Ready to deliver from stock.
Made in Switzerland
Bed opening 260 mm
Stroke: 13-40 mm
Strokes per minute.: 800 spm variable from 100-800 spm
With Auto lubrication
Main shaft cooler
Pneumatic clutch
Three working mode
Programmable speed and number of strokes,
Digital punching speed read out
standard und NC kontrol
separate el. control cabinet
Feeding from left to right
Roll feed BRUDERER BBV 190/60, links
Strip width ca. max. 190 mm
Feeding ca. max. 60 mm
Weight ca. 3.000 kg
Dimension ca. 1100 x 1.400 x 2.200 mm
Feed pitch up to max. 60 mm adjustable, highly accurate
Programmable length auto stop
Digital speed counter
Three working mode: single punch, complete stroke and full automatic
Two hands safety start and emergency stop
Pneumatic clutch
Indexing per minute, infinitely variable 60 - 800 strokes
Automatic in feed, fully synchronized with punching moment
Comes with strip straightening device on board and strip lubrication
