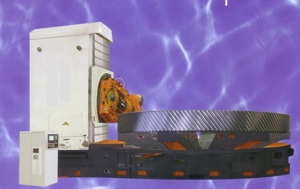

CHINA Gear Hobbers New

Main specification:
Max. workpiece diameter φ12,000mm
Min. workpiece diameter φ2,400mm
Max. module 42mm
Max. travel distance 2,000mm
Max. helical angle ±45°deg
Max. diameter of hob φ550mm
Max. Length of hob 550mm
Max. travel of hob shift 490mm
Spindle taper hole of hob 95mm (1:10)
Horizontal distance of hob center to worktable center 1,450～6,420mm
Vertical distance of hob center to worktable surface 645～2,645mm
Diameter of worktable φ4,400mm
Diameter of worktable bore φ2,000mm
Swiveling speed of the hob head slide(A) 0～4.8 deg/s
Max. rotating speed of hob spindle(B) 10～100rpm
Max. rotating speed of worktable(C) 1 rpm
Radial feed speed (X axis) 0～2000mm/min
Hob shift rapid feed (Y axis) 0～3000mm/min
Axial feed speed (Z axis) 0～1000mm/min
Power of main motor 105 Kw
Max. weight of workpiece 60,000kg
Total power of the machine 280Kw
Overall dimension(L*W*H) 13,970*7,600*5,300mm
Weight of the machine 130,000kg
