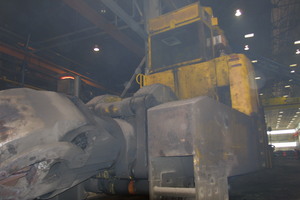

27.5 ton Herr Voss Electric Mobile Forging Manipulator
Max actual lifting capacity: 27.5 stons (25,000 kgs)
Weight on front wheels: w/o load - 70,000 lbs
Weight on front wheels: w/load - 139,400 lbs
Max round workpiece: 36" diameter (914.4mm)
Max square workpiece: 34" x 34" (863.6 x 863.6mm)
Max speed forward or reverse: 173 fpm (52.7 mtrs/min)
Front tire size: 36" x 24" x 30"
Rear tire size: 32" x 16" x 28"
Distance between wheel centers: 156" F-to-B (3,962.4mm)
Height floor to top of cab: 177.5" (4,508.5mm)
Total manipulator length: 293" (7,442.2mm)
Built new 1978-79, this Forging Manipulator is currently operating and will be available for shipment around July of 2011.
It comes with an assortment of spares including a spare Lift, several tilt cylinders, hoses, a drive motor, a used main pump, and others.
It is available for inspection on request.
