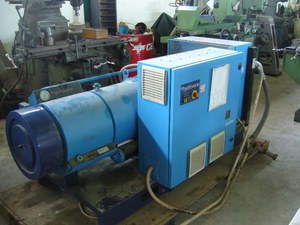

HYDROVANE HV37 Air Compressors, Rotary Screw/Sliding Vane Used

Horizontal Model HV37
50 Hz
Series HV Series
Description Hydrovane (HV Series)
Compressed Gas Air
Free Air Supply Output at Rated Pressure (m3/min) 5.3 to 6.0
Max or Rated Operating Pressure (Bar g) 8 to 10
Motor Power (kW) 37
Noise Levels (db) 84
Length (mm) 1917
Width (mm) 892
Height (mm) 1106
Outputs of Compressed Air (Inches) 1.5
Weight (kg) 690
Speed ​​(rpm) 1450
Oil capacity (l) 23
Cooling System Air-Cooled
Power Supply 400V (50Hz)
Direct Drive Transmission System
Cleanliness of air (mg/m3) <3
Nominal Operating Pressure: 8 bar g
Free Air Supply Output = 6.0 m3/min
Speed ​​(rpm) 1450
