Information
Model:

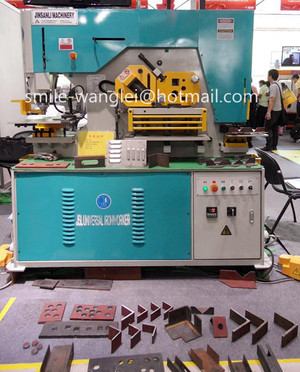

DIW-120/120E/120L (Q35Y-25)
Location:
Jingjiang
Jiangsu
China
Specifications
Angle (L1):
23" / 584.2 mm
Angle (L2):
23" / 584.2 mm
Angle (T):
0.550 " / 14mm
Description
DIW-120/12E/120L Technical Parameter
Punching Pressure: 120T
Max.shearing thickness of steel plates: 25mm
Strength of steel plates: ≤450
Angle of shearing: 7°
Shearing size of one stroke: 25*330mm or 16*600mm
Ram stroke: 80mm
Number of stroke: 6 times/min
Depth of throat: 400mm
Punching thickness: 25mm
Max. Diameter of punching: 35mm
Main motor power: 7.5KW
Overall dimension (L*W*H):2350*980*2100mm
N.W:4800kg
Seller Information
Address:
Jingjiang, Jiangsu
China
Phone:
(+86) 5238-450-9610
Coco Wang (sales contact)
Mobile: (+86) 1526-103-1350
|
