Information
Model:

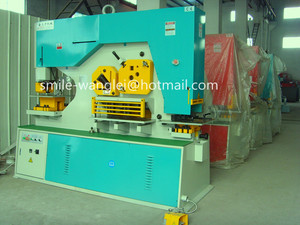

DIW-250E/250L (Q35Y-50)
Availability:
Build to Order
Location:
Jingjiang
Jiangsu
China
Specifications
Angle (L1):
23" / 584.2 mm
Angle (L2):
23" / 584.2 mm
Dimensions
3000*1440*2450mm
Description
Punching Pressure: 250T
Max.shearing thickness of steel plates: 50mm
Strength of steel plates: ≤450
Angle of shearing: 8°
Shearing size of one stroke: 40*400mm or 30*750
Ram stroke: 100mm
Number of stroke: 8 times/min
Depth of throat: 600mm
Punching thickness: 40mm
Max. Diameter of punching: 40mm
Main motor power: 18.5KW
Overall dimension (L*W*H):3000*1440*2450mm
N.W:10800kg
Seller Information
Address:
Jingjiang, Jiangsu
China
Phone:
(+86) 5238-450-9610
Coco Wang (sales contact)
Mobile: (+86) 1526-103-1350
|
