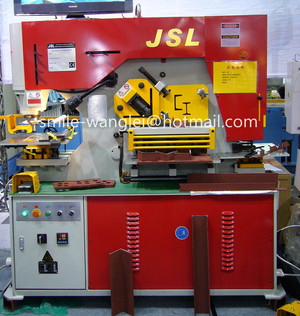

HST DIW-90/90E/90L (Q35Y-20) Ironworkers New

FOR E series
1. Automatic Holding tight System
2. Temperature Cooling System

FOR L series
1. Automatic Holding tight System
2. Temperature Cooling System
3. Dual-working hydraulic ironworkers, which can make punching and notching
station (two cylinders) simultaneously working without interferences.

Model DIW-90/90E/90L (Q35Y-20 as previous)
Punching Pressure(T) 90
Max Shearing Thickness(mm) 20
Plate Strength(N/mm2) ≤450
Shearing Angle 8°
Flat Bar(H*W)(mm) 20×330
10×480
Ram Stroke(mm) 80
Number of Stroke(times/min) 8
Throat Depth(mm) 355
Punching Thickness(mm) 20
Max Punching Diameter(mm) 30
Main Motor Power (kw) 5.5
Overall Dimensions L×W×H(mm) 1950×900×1930
Weight(kg) 2600
