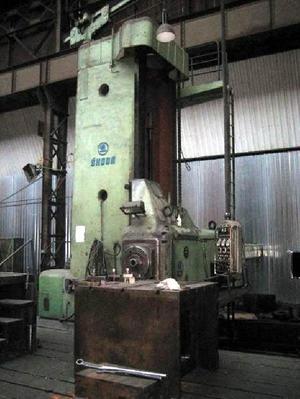

SKODA WD-200A Boring Mills, Horizontal, Floor Type Used

Skoda Floor Type Horizontal Boring Mill
Model: WD-200A (Ram Type)

YOM: 1965

Technical Specifications
Spindle Diameter ..................................................... 200 MM

Ram Size.................................................................... 520 x 520 MM
Vertical Head Travel, Y ............................................. 3300 MM
Horizontal Column Travel, X ..................................... 4500 MM
Ram Travel ............................................................... 1600 MM
Spindle Travel ........................................................... 2000 MM
Spindle Speeds: ........................................................ 1.5 to 630 RPM
Spindle Taper: ........................................................... #120 Metic W/#50 Adapter
Rapid Traverse: ......................................................... 3200 mm/min
Feeds:
Spindle ....................................................................... 0.5 - 3200 MM
Ram ........................................................................... .05 - 3200 MM
Vertical ....................................................................... 1 - 3200 MM
Longitudinal ................................................................ 1 - 3200 MM

Equipped With:
Rotary table model E20 , size : 2000x2000mm, 20Tons Loading capacity

Floor Plates : 3750 x 1250 x 300 MM, 2 Nos.
