SIGNODEالتطويق ماكينات وخطوط

بطاقة الهوية
106170
علامة تجارية
السنة
1984
الموقع
Ohio
الولايات المتحدة الامريكية
رقم المخزن
8435

الوصف

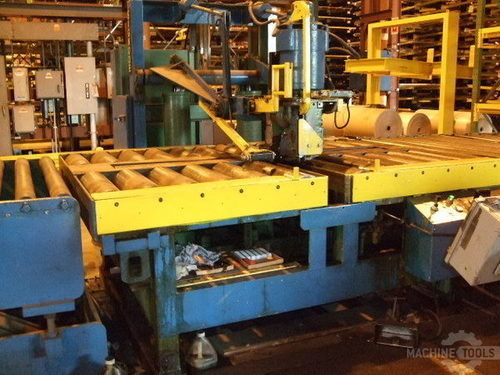

6,000# x 60" ROYALTON DOWNENDER BANDING HEAD & TABLE

المواصفات

6,000 lbs. x 60" O.D. Capacity

Consisting of:

-Downlayer: Royalton
New in 1984
6,000# Capacity
3.5" Dia. x 55.5" Face Rolls
Gravity Feed Rolls
58" x 65" Top
41" Passline Height to top of rolls
(2) - 5" Bore Hydraulic Tilt Cylinders
Horn In / Out by 2.5" Bore Hydraulic Cylinder
Approx. 44" from floor to top of horn in
raised position.
In-Line Discharge

-Banding Head and Table: 10,000 Lb. Capacity
Signode M20SV-3425 Semi-Automatic Bander
Serial # 4007
Powered Raise and Lower for head
Nominal Coil O.D.: 60" (Approx. 65" O.D. Max.)
(2) Tapered Turning Rolls
76" Overall Length, Tip to Tip
Powered Conveyor Top W/6.5" Dia. Rolls
Driven by 3 HP AC Motor thru reducer
1800 RPM, 220/440 V
Table Size: 96" L-R x 70" F-B
Main Panel, 480 V

-Removed and in storage; Toledo, OH
