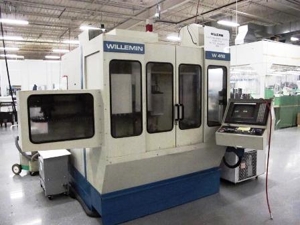

WILLEMIN W-418 Bمراكز التجهيز العمودي (5 محور أو أكثر)

بطاقة الهوية
129379
علامة تجارية
موديل
السنة
1998
الموقع
Minnesota
الولايات المتحدة الامريكية
رقم المخزن
308309
الثمن

الوصف

Willemin W418B, 1998, 19.6"X, 9.8"Y, 15.7"Z, New spindle, Video (Loc: MN), Fanuc

المواصفات

تحويل المواصفات للمتري
X
19.6 "
Y
9.84 "
Z
15.74 "
أكسات
5
القدرة
9 hp
RPM
50 rpm
# ATC
48
الأبعاد
87”LR x 103.14”FB x 96.85”H
الوزن
5,830 Lbs
CNC تحكم
CNC (GE Fanuc 15-MB CNC)

Watch a video of this machine running:

Copy and paste the following link into your browser:
http://www.youtube.com/watch?v=MdrU7uD4Q2E

Factory Brochure Specifications:
CNC Controls:
GE Fanuc 15-MB CNC Control with CRT

Travels:
X-Axis 19.6" / 500mm
Y-Axis 9.84" / 250mm
Z-Axis 15.74" / 400mm
B-Axis (Head) 110 Degrees
C-Axis ITable) 360 Degrees
Spindle with Built in Motor:
Tool Taper ISO 25
Power 9 HP/6.6 kW
Speeds 50 - 18,000 RPM (Option)
Feeds and Feed Forces:
X - Y - Z Rapids 787 IPM / 29 m/min.
Axes Drives AC Motor
Rotary Table C-Axis:
Torque 55 Nm
Holding brake 500 Nm
Table Dimension 7" Diameter / 180mm Diameter
Speed 50 RPM
Spindle B-Axis Swiveling 0 - 110 Degrees
Speed 40 RPM
Tool Magazine:
Number of Tools 48
Speed 30 RPM
Time for Tool to Tool Change 1 Second
Time from Chip to Chip 5 Seconds

Resolution
X - Y - Z Travels 0.001 mm
C - B Moves 0.001 Degree

Apprx Machine Weight 5830 Lbs. or 2650 kg.
Apprx Machine Dimensions: 87"LR x 103.14"FB x 96.85"H
2210mm LR x 2620mm FB x 2460mm HT.

Equipped with this machine:
SPINDLE REBUILT BY FACTORY IN 2008
Fanuc Control with RS-232, JoyStick, Keyboard, 2Mb Menory, 19,200 baud rate
Rigid Tapping
Coolant System, Central Lubrication
Approximate 10 Misc. EROWA and other workholding fixtures.
Manuals

Note: New Spindle within the last 48 months or less. Very low hours since the
install, due to work transfer to a higher automation solution.
