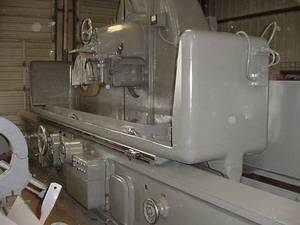

24" x 120" Used Mattison Horizontal Surface Grinder Ref.#G802520

Model: 24X120

Serial No. 18389 New: 1953

Table Size 24" x 124

Magnetic Chuck Size (1 Piece) 24" X 120"

Longitudinal 126"

Variable Table Speed up To 125' FPM

Cross Travel 25"

Auto Cross Feeds Increment 1/32" To 3"

Auto Down Feeds Increment .004 To .0002

Vertical Working Height 20"

Vertical Handwheel Grad. .0001

Standard Size Grinding Wheel 18" x 10" x 6"

Standard Grinding Wheel Speed 880 Rpm's

Main Motor 30 Hp 440 Volt

Hydraulic System 10 Hp 440 Volt

Weight 42,000 Lbs

Approx Dimensions 24' L To R

Approx Dimensions 8''6" F To B

Approx Height 10'

Heavy Duty Meehanite Cast Iron Yes

External Coolant Tank And Filter Yes

Hydraulic Cross Feed Yes

Hydraulic Feed Right To Left Yes

Electromatic Neutrofier For Chuck Yes

Wheel Rapid Traverse Up & Down Yes

Dresser Yes

Guards Yes

Note: Machine Has Been Cleaned, Painted & Cycled.

Condition Appear To Be Very Good

Price: Please Call
