AUTOMATED FINISHING AFI-2H36ماكينات اهتزاز

بطاقة الهوية
173276
علامة تجارية
موديل
السنة
1986
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
129516
صور ( 10 )

الممزيد حول هذا النموذج

لعرض مزيد من المعلومات على AUTOMATED FINISHING AFI-2H36 ، بما في ذلك المعلومات التجارية، والصور، والفيديو، وأكثر من ذلك، انقر هنا .

بطاقة الهوية
173276
علامة تجارية
موديل
السنة
1986
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
129516

الوصف

4 Cu. Ft. Automated Finishing AFI-2H36 VIBRATORY FINISHER, 2-SPINDLE

المواصفات

تحويل المواصفات للمتري
حجم الغرفة
4 ft³
القدرة
15 hp

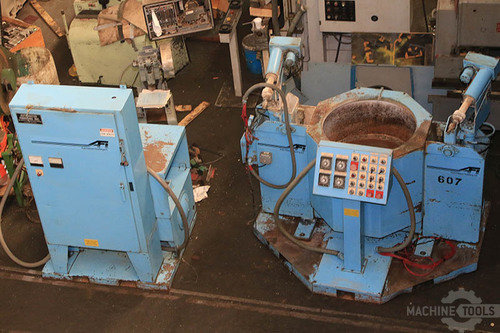

4 Cubic Foot "Automated Finishing" 2-Spindle Finishing Machine
Model: AFI-2H36 S/N: 1731 New: 1986

The Automated Finishing Spindle Machine is designed to
rapidly remove burrs and surface finish a wide variety
of parts. Items especially suited for use in the Spindle
Machine are those that are symmetric such as gears, shafts,
pulleys and rotors. An abrasive media is rotated at
varying speeds in a steel tub to act against a submerged
part held in place by a spindle. To assure a uniform
finish on all areas of the part, the spindle is rotated
within the rotating media. There are two spindles on
the machine, each of which can be adjusted and moved
in a multitude of positions to enable the acceptance of
a wide variety of parts.

The electrical control panel can dictate all machine
operations except for manual adjustments on the spindle
arm mechanisms. Process timers for full and half
cycles can tailor the part finishing to specific
requirements. While in the auto mode, the machine will
run a complete cycle with out any operator assistance
except for loading and unloading the part.

Driving the machine tub is a bidirectional hydraulic
motor mounted to the lower frame section. By turning
the hand knob on the flow control valve, located on the
backside of the tub housing, the speed can vary from 32
to 128 RPM which is equivalent to 300 t0 1200 surface
feet per minute (S.F.M.).

EQUIPPED WITH:
OPERATOR CONTROL CONSOLE
COMPOUND SOLUTION CONTROL SYSTEM
INTERNAL SPRAY RINSE UNIT
15 H.P./3/60/230-460 VOLT PUMP MOTOR
CAN BE USED WITH STEEL MEDIA (260LBS. TO 320LBS. PER
CUBIC FT.)

SPECIAL NOTE:
AUTOMATED FINISHING INC. IS LOCATED IN WI (262) 252-4646.

** INSPECT IN OUR HARRISON, N.J. WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
