STRIPPIT SUPER AGاللكمات محطة واحدة

بطاقة الهوية
173335
علامة تجارية
موديل
السنة
1989
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
139522
الثمن

الوصف

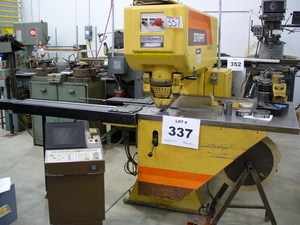

30 Tons 30" Throat Strippit SUPER AG CNC PUNCH PRESS, Programmable CNC Control

المواصفات

Strippit Super AG CNC 2-Axis Gauging
STRIPPIT SUPER AG 30/30
S/N 004083189 NEW 1989

Storage & Edit Bubble Memory (128K Memory).
Manual Data Input.
Calculation Mode.
Programmable Feed Rate.
Decimal Point Programming.
Absolute/Incremental Programming.
15 Digit Program / Part Number.
CRT Display for Command, Absolute Position, Tool.
Machine Status, Date, & Part Drawing.
Automatic Parts Counter.
Block Delete.
Inch/Metric Switchable.
Pattern Functions Includes.
Grid From Center Position.
Grid From Corner Position.
Bolt Hole Circle.
Rectangular Cut Out With Square or Radius Corners.
Arc.
Circular Nibbling.
Straight Nibbling.
All of above Can Be Rotated To Any Angle.
Lists All Programs.
Lists All Tools In Order Of Shape & Size Required For Individual
Programs.
Offset to Datum Lines

Maximum Material - .250" (6.3mm)

Capacity ­

1.000" dia. (25.4mm) in .250" (6.3mm) mild steel
3.500" dia" (88.9mm) in 12 ga. (2.6mm) mild steel

Axis Travel - 30.00" x 39.37" (400mm x 1000mm)

Positioning Accuracy - +/­ .005" (+/­ .13mm)

Positioning Speed - Up to 590 IPM (15 MPM) -

Adjustable Strokes Per Minute - 80 (Operator Dependent)

Width - 100"
Height - 68"
Depth - 51"
Table Height - 39"
Shipping Weight 7,300 Lbs.

FOR MORE INFORMATION: Call Rick at 973-497-7560
