MOORE #3الرقصة المطاحن

بطاقة الهوية
173388
علامة تجارية
موديل
السنة
1967
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
141260

الوصف

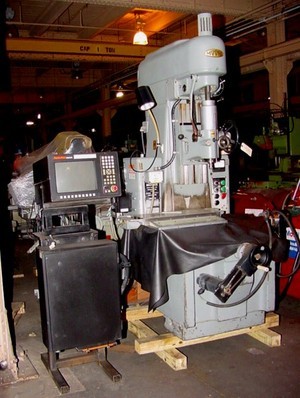

18" X Axis 11" Y Axis Moore #3 CNC JIG BORER, ANILAM 3200MK CNC (3-AXIS) NEW IN 2001

المواصفات

تحويل المواصفات للمتري
الجدول الحجم-W
11 "
الجدول الحجم-L
24 "

MOORE #3 JIG BORER

** ANILAM 3200 MK 3-AXIS CNC CONTROL INSTALLED NEW IN 2001)

MODEl: B-18 S/N: B-1194 NEW: 1967

TABLE SIZE ............................... 11" X 24" TABLE
LONGITUDINAL TABLE TRAVEL ................ 18"
CROSS TABLE TRAVEL ....................... 11"
SPINDLE HOUSING TRAVEL ................... 12"
SPINDLE QUILL TRAVEL ..................... 5"
TABLE TOP TO SPINDLE, MIN. ............... 3- 7/8"
MAX. ............... 20- 13/16"
SPINDLE TO COLUMN WAYS ................... 10"
SPINDLE TO COLUMN BELOW WAYS ............. 13- 3/4"

BORING CAPACITY .......................... 5/32" TO 5"
INFINITELY VARIABLE SPINDLE SPEEDS ....... 60 TO 2,250 RPM
FEEDS PER REV. (3) .............. 0.000075", .0015" & .003"
APPROX. WEIGHT ........................... 4,000 LBS.
APPROX. DIMENSIONS ..................... 58" X 60" X 89"H

MACHINE FEATURES:
HARDENED WAYS
HARDENED, GROUND & LAPPED LEADSCREWS
TWO-SPEED MOTOR (1 H.P. & 2 H.P.)
MACHINE IS PRESENTLY WIRED FOR 3/60/440 VOLTS/5 AMP SERVICE
REQUIRED

EQUIPPED WITH:
"ANILAM" 3200MK 3-AXIS CNC CONTROL INSTALLED IN 2001

TOOLING PACKAGE INCLUDED
Fly Cutter Tool
Indicator Holder
Precision Boring Chuck
Moore Collet w/ Albrecht 0-10mm Keyless Drill Chuck
Moore Collet w/Criterion #2 Boring Head
(5) Moore Collets

** SUPERB CONDITION & APPEARANCE (ORIGINAL PAINT) **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
