J&L CLASSIC 120مناقل

بطاقة الهوية
173525
علامة تجارية
موديل
النوع
السنة
1982
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
144593

الوصف

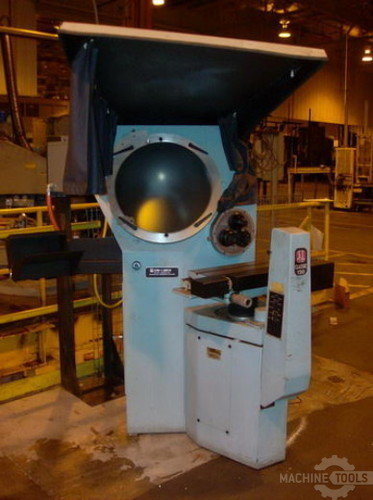

20" Screen 14 Jones & Lamson CLASSIC 120 OPTICAL COMPARATOR, POWER TABLE, (3) LENSES,

المواصفات

تحويل المواصفات للمتري
ضياء. من الشاشة
20 "

20" JONES & LAMSON OPTICAL COMPARATOR    MODEL CLASSIC 120     S/N: C-520711       NEW : 1982                                                                 SPECIFICATIONS:                                           SCREEN DIAMETER........................... 20"             TABLE SIZE................................ 6" X 30"   MEASURING CAPACITY (TABLE TRAVEL)                                                LONGITUDINAL: ..... 8"                                   VERTICAL:.......... 6"             ANGULAR MEASURING CAPACITY.... 360 DEGREE CHART ROTATION   CROSS TRAVEL FOR FOCUSING................. 1.5"             HELIX ROTATION-TABLE SWIVELS.. 15 DEGREES LEFT & RIGHT     DISATANCE, LENS CENTERLINE TO TABLE ...... 8- 1/4" MAX.                                           2- 1/4" MIN. FLOOR SPACE: 43" L-R X 57" F-B X 72" HIGH                 WEIGHT: 1,400 LBS. (APPROX.)                                                                                           EQUIPTMENT: 20" DIAMETER SCREEN SIDE SCREEN VIEWING                                       SINGLE SPINDLE TABLE SUPPORT   J & L REFLECTION (SURFACE ILLUMINATION) ATTACHMENT THREE POSITION LENS TURRET W/10X, 20X & 50X LENSES TABLE SWIVELS (HELIX ADJUSTMENT) +/- 15 DEGREES POWER TABLE TRAVERSE POWER TABLE ELEVATION NOVALITE MERCURY ARC PROJECTION                           ELECTRICAL- 1/60/118 VOLT                       ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **       * ALL ORIGINAL CONDITION & APPEARANCE  ***

FOR MORE INFORMATION: Call Andy at 973-497-7600
