K.O. LEE B6062Hأداة وكتر المطاحن

بطاقة الهوية
174273
علامة تجارية
موديل
السنة
1973
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
145181

الوصف

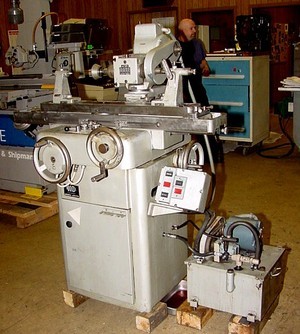

K.O. Lee B6062H "DAKOTA SERIES" TOOL & CUTTER GRINDER, HYD. TABLE, TILTING WHEELHEAD,

المواصفات

تحويل المواصفات للمتري
الأرجحة
12.25 "
المراكز
32 "
القدرة
1 hp

K.O. LEE "DAKOTA" SERIES UNIVERSAL TOOL & CUTTER GRINDER  MODEL: B6062H       S/N: 16550-FE     NEW: 1975    SWING OVER TABLE ........................... 12-1/4"DISTANCE BETWEEN TAILSTOCKS ..................... 32" TABLE WORKING SURFACE .............. 5-1/4" X 37-1/4" SUB TABLE .................................. 8" X 48" LONGITUDINAL TABLE TRAVERSE ..................... 20" TABLE FEED PER REV. OF HANDWHEEL: FAST ....................................... 2-13/16" SLOW .......................................... 9/16" CROSS FEED ....................................... 8" FEED PER REV. OF HANDWHEEL (.001" GRAD.) ,,... 0.100" VERTICAL MOVEMENT OF COLUMN ................. 10-1/2" FEED PER REV. OF HANDWHEEL (.001" GRAD.)...... 0.050" COLUMN DIAMETER .................................. 6" MINIMUM/MAXIMUM DISTANCE CENTERLINE OF WHEEL SHAFT TO TABLE ......................5-3/8" / 15-1/4" MAXIMUM DISTANCE FROM COLUMN TO OUTSIDE  OF STRAIGHT WHEEL; DOVETAIL SLIDE NOT EXTENDED,  SPINDLE 90 DEG. TO TABLE .................... 6-3/8"MAXIMUM DISTANCE FROM COLUMN TO OUTSIDE  OF STRAIGHT WHEEL; DOVETAIL SLIDE EXTENDED,  SPINDLE 90 DEGREES TO TABLE ................ 11-1/2"TABLE SWIVELS (CALIBRATION: 3" PER FT.,  15 DEG. EITHER SIDE OF CENTER) .......... 225 DEGREESWHEEL HEAD SWIVEL ........................ 360 DEGREES MAXIMUM I.D. DEPTH, HOLE SIZE 9/32" TO 2" ..... 3-1/2" MAXIMUM CROSS FEED SURFACE GRINDING W/8" WHEEL..... 5" SPINDLE SPEED RANGE (HEAVY DUTY WHEELHEAD) .............. 2840 TO 5330 RPM APPROXIMATE MACHINE WEIGHT ................. 1,300 LBS    EQUIPPED WITH:HYDRAULIC TABLE FRONT & REAR HANDWHEELS FOR TABLE TRAVERSE "DAKOTA" HEAVY DUTY #B6055HD UNIVERSAL GRINDING WHEELHEAD FEATURES: - SWIVELLING & TILTING (22 DEG. EITHER SIDE OF VERTICAL) - 1 HP MOTOR WIRED FOR 3/60/220-440 VOLT OPERATION - 3-1/2" TO 8" DIAMETER WHEELS BIJUR LUBRICATOR (ONE-SHOT)      ** EXCELLENT CONDITION& APPEARANCE ** ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
