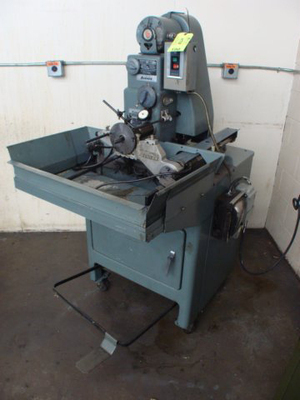

SUNNEN MBB-1650هونات

بطاقة الهوية
175352
علامة تجارية
موديل
النوع
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
144331

الوصف

6.5" Dia 16" Stroke Sunnen MBB-1650DMS HONE, Sunnen KKN-100 Square Honing Fixture

المواصفات

تحويل المواصفات للمتري
أقل قطر للماندريل
0.06 "
أقصى قطر للماندريل
6.5 "
السكتة (حد ادني
16 "
أفقى/رأسي
Horz

SUNNEN HONE with "KKN-100" SQUARE HONING FIXTURE ATTACHEMNT



MODEL: MBB-1650    S/N: 53004     NEW: 1972



I.D. RANGE ............................... 0.060" TO 6.500"

LENGTH RANGE ............................. HONES BORES UP TO 16" IN LENGTH,

DEPENDING ON BORE DIAMETER

SPINDLE SPEEDS ........................... 200 TO 1,600 RPM

POWER STROKING RATES (5) ................. 80, 110, 169, 220 & 310 SPM

SPINDLE MOTOR ............................ 1/2 HP

SPINDLE BRAKE ............................ SELF-ENERGIZING BAND-TYPE

HONING OIL PUMP .......................... UTILIZES SPINDLE DRIVE MOTOR

HONING OIL CAPACITY ...................... 16 GALLONS

FLOOR SPACE .............................. 42"W X 64"D X 63"H

APPROXIMATE WEIGHT ....................... 1,000 LBS



MACHINE FEATURES:

FULL LENGTH FOOT TREADLE

HONING OIL RESERVOIR EASILY ACCESSIBLE BY DOOR

220-440 VOLT THREE PHASE ELECTRICS



EQUIPPED WITH:

SUNNEN MODEL KKN-100 SQUARE HONING FIXTURE

"The Square Honing Fixture is intended for use when

honing, relatively short bores having a flat face

approximately square with the bore to be honed.

It can be used to create or maintain squareness

between bore and face when honing bores which are

1/3 as long as their diameter or shorter. This

squareness can be very accurate, depending on how

close the face plate is adjusted.

It can be used to stabilize many parts whose

proportions make it difficult to hone free-hand

without causing bellmouth in the bores."





SPECIAL NOTE:

IF YOU WANT A MACHINE WITH THE "KKN-100" SQUARE HONING FIXTURE, THIS MACHINE

IS AN EXCEPTIONAL VALUE, AS THAT ONE ACCESSORY COSTS NEW TODAY PRETTY MUCH

WHAT WE ARE ASKING FOR THE SUNNEN MBB-1650 WITH THE FIXTURE!





** EXCELLENT CONDITION& APPEARANCE **

*INSPECT UNDER POWER IN OUR WAREHOUSE *

FOR MORE INFORMATION: Call Andy at 973-497-7600
