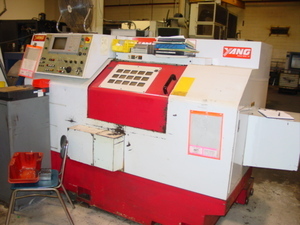

YANG SML-20 2-AXIS CNC TURNING CENTER
NEW: 1999
SPECIFICATIONS
Swing Over Bed Ways ..................... 18.9”
Swing Over Slide ........................ 12.6"
Maximum Turning Diameter ................ 7.87”
Max. Machining Length ................... 20.0”
X-Axis Travel ........................... 6.93"
Z-Axis Travel ........................... 20.47"
Spindle Bore ............................ 2.4”
Bar Capacity ............................ 2.0”
Spindle Nose ............................ A2-6
Spindle Horsepower ...................... 10/15 HP
Spindle Speed (Constant Surface Speed)... 45 – 4,500 RPM
Number of Tools in Turret ............... 8 Tools
Rapid Traverse Feed Rate ................ 1,181 IPM
Tailstock Stroke ........................ 16.73"
Tailstock Quill Dia. .................... 2.56"
Tailstock Quill Taper ................... MT#4
Tailstock Quill Stroke .................. 1.97"
Machine Weight .......................... 5,070 LBS.

EQUIPPED WITH:
- MITSUBISHI CNC CONTROL
- 8" 3-JAW HYDRAULIC CHUCK
- TAILSTOCK
- REAR DISCHARGE CHIP CONVEYOR
- ALL AVAILABLE TOOLHOLDERS
- ALL AVAILABLE MANUALS

FOR MORE INFORMATION: Call Mike at 973-497-7540
