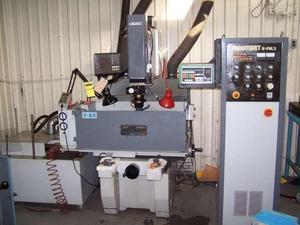

Maximart V-45 Ram Type Conventional EDM

 with 1,116 Hours Use!

Comes with Programmable Conweb Orbitor & System 3R Toolholder

Serial Number:   27061         New:   1992

46" x 25" x 16"H Work Tank Size

27- 3/4" x 16"  Table Work Surface

Table Travels are Approximately 18" x 12.5"

8" Spindle Travel

Power Backslide Travel for the Ram (On the Pendant)

Maximart "V-Puls" 75 Amp Power Supply & Control

  with Simple, Understandable Spark& Servo Controls

Operator's Pendant

"Conweb" Orbit-Cut COC-200 Programmable Orbitor

"System 3R" Toolholder

  Fagor 3-Axis Digital Readout

 6" x 18" Permanent Magnetic Chuck

 Large External Dielectric Tank

Special Note:

Very Low Hours (1,116 Hours)!

Physical Dimensions:

Machine: 48" Deep x 57" Wide, x 82" High

Power Supply: 30" Deep x 23" Wide x 69" High

Dielectric Tank:

** Inspect in our Harrison, New Jersey Warehouse **

** Exceptional, Near New Condition & Appearance **

FOR MORE INFORMATION: Call Andrew at 973-497-7600
