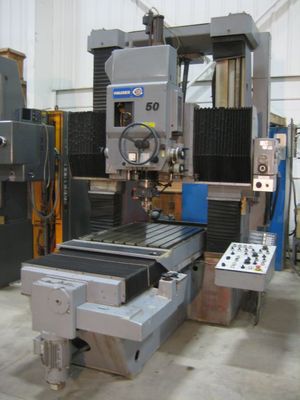

SIP HAUSER S50 DRالرقصة المطاحن

بطاقة الهوية
199085
علامة تجارية
موديل
السنة
1981
الموقع
Michigan
الولايات المتحدة الامريكية
عودة السياسة
30 يوم

الوصف

SIP-HAUSER S-50 DR BRIDGE TYPE PRECISION JIG GRINDING MACHINE SERIAL NO. 0105 BUILT 1981 STOCK NO. 6211 CATALOG SPECIFICATIONS: TABLE SIZE: 33.8" X 40" TABLE TRAVEL(X AXIS): 35.4" DISTANCE BETWEEN COLUMNS: 37.4" VERTICAL RAIL TRAVEL: 31.4" DISTANCE FROM SPINDLE TO TABLE: 29.5" MAX. HEAD CROSS TRAVEL (Y AXIS): 23.6" X & Y AXIS FEED RATES: .6 - 295 IPM STROKE OF GRINDING QUILL (Z AXIS): 7" PLANETARY SPINDLE SPEEDS: 5 - 250 RPM MAXIMUM ANGLE OF TAPER GRINDING: 16 DEGREES DIMENSIONS: 118" x 83" x 113" HIGH APPROX. WEIGHT: 15,000 LBS. EQUIPPED WITH: SONY MODEL LH51 2 AXIS DIGITAL READOUT (1) HAUSER JIG GRINDING HEAD HARDENED BEDWAYS COOLANT SYSTEM PUSH BUTTON ELECTRICAL CONTROLS MACHINE MAY BE INSPECTED UNDER POWER ROBERTS MACHINERY SALES, LTD. 930 E. DRAYTON, FERNDALE, MI 48220

المواصفات

تحويل المواصفات للمتري
الجدول الحجم-W
33.8 "
الجدول الحجم-L
40 "
الأبعاد
118" x 83" x 113" HIGH
الوزن
15,000 LBS. APPROX.

SIP-HAUSER S-50 DR BRIDGE TYPE PRECISION JIG GRINDING MACHINE

SERIAL NO. 0105 BUILT 1981 STOCK NO. 6211

CATALOG SPECIFICATIONS:
TABLE SIZE: 33.8" X 40"
TABLE TRAVEL(X AXIS): 35.4"
DISTANCE BETWEEN COLUMNS: 37.4"
VERTICAL RAIL TRAVEL: 31.4"
DISTANCE FROM SPINDLE TO TABLE: 29.5" MAX.
HEAD CROSS TRAVEL (Y AXIS): 23.6"
X & Y AXIS FEED RATES: .6 - 295 IPM
STROKE OF GRINDING QUILL (Z AXIS): 7"
PLANETARY SPINDLE SPEEDS: 5 - 250 RPM
MAXIMUM ANGLE OF TAPER GRINDING: 16 DEGREES
DIMENSIONS: 118" x 83" x 113" HIGH
APPROX. WEIGHT: 15,000 LBS.

EQUIPPED WITH:
SONY MODEL LH51 2 AXIS DIGITAL READOUT
(1) HAUSER JIG GRINDING HEAD
HARDENED BEDWAYS
COOLANT SYSTEM
PUSH BUTTON ELECTRICAL CONTROLS

MACHINE MAY BE INSPECTED UNDER POWER
