LANDIS 1Rالمطاحن الأسطوانية العالمي

بطاقة الهوية
220849
علامة تجارية
موديل
السنة
1991
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
149347

الوصف

10" Swing 20" Centers Landis 1R OD GRINDER, Hyd. Table, I.D. Attach.

المواصفات

تحويل المواصفات للمتري
الأرجحة
10 "
المراكز
20 "
القدرة
3 hp
موتور رأس الشغلة
0.5 hp
سرعة عامو دوران رأس الشغلة
600 RPM
قطر عجلة التجليخ
12 "

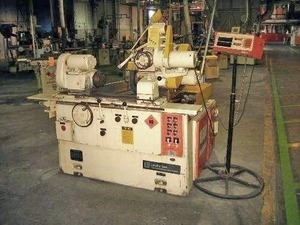

10" X 20" LANDIS (MADE IN USA) "HIGH-PRECISION"
UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

MODEL: 1R S/N: T905-13 NEW: 1991

NOMINAL SWING OVER TABLE .......................... 10"
MAXIMUM SWING OVER TABLE ...................... 10-7/8"
NOMINAL DISTANCE BETWEEN CENTERS .................. 20"
HYDRAULIC TABLE TRAVERSE ............... 2" TO 240" IPM
TRAVERSE PER TURN OF HANDWHEEL ................. 0.200"
TRAVERSE HANDWHEEL GRADUATIONS ................. 0.001"
SWIVEL TABLE GRADUATED ........ 20 DEGREES, 4" PER FOOT

WHEELHEAD:
WHEELHEAD SWIVELS LEFT & RIGHT OF CENTER ...... 90 DEG.
WHEEL SIZE .............................. 12" DIAMETER
MAXIMUM WIDTH, FULL WHEEL ......................... 3"
MINIMUM FEED GRADUATIONS - ON DIAMETER ..... 0.000050"
WORK DIAMETER REDUCTION PER REVOLUTION OF
HANDWHEEL ..................................... 0.100"
WORK DIAMETER REDUCTION PER REVOLUTION OF
FINE FEED KNOB ............................... 0.001"
WHEELHEAD MOTOR ................................ 5 HP

WORKHEAD:
WORKHEAD SWIVELS TOWARD WHEELHEAD ........ 90 DEGREES
WORKHEAD SWIVELS AWAY FROM WHEELHEAD ..... 30 DEGREES
WORKHEAD SPINDLE SPEEDS (6) ........... 60 TO 600 RPM
WORKHEAD SPINDLE NOSE ......................... A2-5"
WORKHEAD MOTOR ............................... 1/4 HP

APPROXIMATE WEIGHT .......................... 4,150 LBS
APPROXIMATE DIMENSIONS ............. 8'L X 4'W X 6'6"HT

EQUIPPED WITH:
SWING DOWN I.D. GRINDING ATTACHMENT WITH I.D. SPINDLE
UNIVERSAL WHEELHEAD AND UNIVERSAL WORKHEAD
HYDRAULIC TABLE TRAVERSE
DUAL LIVE/DEAD SPINDLE HEADSTOCK
HARD FILM MICROSHERE WHEEL SPINDLE BEARINGS
COOLANT SYSTEM
CARRIAGE AND WHEELHEAD WAYS ARE AUTOMATICALLY
LUBRICATED
MACHINE MOTORS ARE WIRED FOR 3/60/230-460 VOLT OPERATION
MACHINE IS PRESENTLY WIRED FOR 460 VOLTS

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

** SUPERB CONDITION & APPEARANCE. THIS MACHINE WAS
THOROUGHLY SERVICED BY US, CYCLED, TAKEN APART, CLEANED
& REPAINTED. **

FOR MORE INFORMATION: Call Andy at 973-497-7600
