NEW CENTURY CENTURY TURN 60مخارط CNC

بطاقة الهوية
221484
علامة تجارية
موديل
النوع
السنة
2002
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
149285b

الوصف

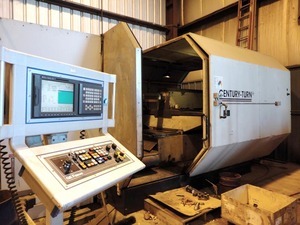

72" Table New Century Mfg. TURN 60 VERTICAL BORING MILL

المواصفات

تحويل المواصفات للمتري
حجم الظرف
60 "
القدرة
40 hp
ماكس RPM
480 rpm
قطر الخراطة
72 "
CNC تحكم
CNC (GE FANUC 18IT)

NEW CENTURY CENTURY CNC LATHE MODEL: TURN 60, NEW: 2002 SPECIFICATIONS: MAXIMUM SWING IN GUARDS ................ 72" MAXIMUM SWING IN (24") GAP ............. 98" (3) CHUCK DIAMETER ..................... 60" SPINDLE RPM ............................ 0-480 RPM SPINDLE HORSE POWER (HP) ............... 25/40 HP SPINDLE GEAR RANGES .................... 2 MAX DIST FACE OF CHUCK TO RAM FACE ..... 51.0" X AXIS TRAVEL .......................... 68.5" Z AXIS TRAVEL .......................... 47 5/8" V AXIS TRAVEL OF CARRIAGE .............. 22.7" RAM HEAD TRAVEL Z AXIS ................. 28.5" AXIS RAPIDS ............................ 400 INCH/MIN AXIS FEED RATES ........................ 0-400 INCH/MIN TOOLING ................................ SANDVIK CAPTO C6 60MM APPROXIMATE DIMENSIONS ................. 214"(LR) X 135"(FB) X 97"(H)   EQUIPPED WITH: - 60" 3 JAW MANUAL CHUCK WITH SCROLLING JAWS - G.E.FANUC 18IT CNC CONTROL - 10 POSITION AUTOMATIC TOOL CHANGER - TURBO CHIP CONVEYOR - SANVIK C-6 TOOLING,  APPROX 15 TOOL - STAINLESS STEEL WAY COVERS - FULL ENCLOSURES - MANUAL PULSE GENERATOR - COOLANT THROUGH TOOL WITH DUAL COOLANT TANKS - ALL DOCUMENTATION AN MANUALS   CONSTRUCTION DESCRIPTION - THE BASE IS A STURDY SINGLE STRUCTURE POLYMERGRANITE 22,000 LBS - X AXIS WAYS ARE 55 MM  IKO LINEAR RAIL WITH 4 ROLLER BEARINGS PER HEAD - Z AXIS HEAD IS A POLYMER GRANITE HEAD WITH HEAVY DUTY RAM AND 4 GIBBS WITH TURCITE - 4 BALLSCREWS ARE 63 DIAMETER 10MM LEAD - SPINDLE IS 2 TIMKEN ROLLER BEARINGS 12 1/2" DIAMETER AND 32,000 LBS. LOAD CAPACITY EACH - ENCLOSURE IS REINFORCED STEEL

FOR MORE INFORMATION: Call David at 973-497-7570
