GIDDINGS & LEWIS WINSLOWMATIC FR-200 FORM RELIEVING GRINDERالمطاحن شكل

بطاقة الهوية
221493
علامة تجارية
موديل
WINSLOWMATIC FR-200 FORM RELIEVING GRINDER
السنة
1992
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
149339
149339
صور ( 10 )
بطاقة الهوية
221493
علامة تجارية
موديل
WINSLOWMATIC FR-200 FORM RELIEVING GRINDER
السنة
1992
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
149339

الوصف

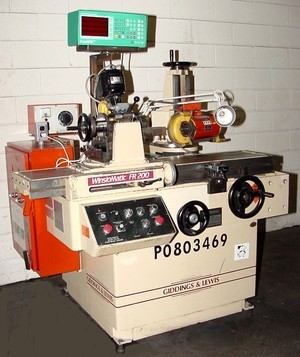

Giddings & Lewis Winslowmatic FR-200 FORM RELIEVING GRINDER TOOL & CUTTER GRINDER, 2-Ax DRO, Dual Hd, Coolant, PRECISE I.D. SPDL.

المواصفات

تحويل المواصفات للمتري
الجدول-W
14 "
الجدول-L
60 "

GIDDINGS & LEWIS (WINSLOW ENGINEERING)
FORM RELIEVING GRINDER

MODEL: FR-200 S/N: 946-0080-92 NEW: 1992

IDEAL FOR ALL THESE TYPES OF TOOLS:
-SUBLAND, STEP & CENTER DRILLS
-COUNTERSINK, SPOTFACE, PORTING & TREPANNING TOOLS
-TAPS, REAMERS, PUNCH INSERTS & FORM TOOLS

CAM-GENERATED MOTION & ROTATION OF THE TOOL ASSURES
CONCENTRIC CUTTING SURFACES
GRINDS TOOLS WITH 1 THRU 18 FLUTES


PLATEN TABLE SIZE ............................. 14" X 60"
PLATEN TABLE TRAVEL ................................. 26"
CROSS SLIDE HANDWHEEL, GRADUATED TO ............. 0.0005"
GRINDER SPINDLE VERTICAL TRAVEL .................. 7-1/2"
GRINDING SPINDLE, MAX. HEIGHT ................... 9- 1/4"
GRINDING SPINDLE TILTS ...................... +/- 25 DEG.
GRINDER SPINDLE SWIVELS . ................... 360 DEGREES
RELIEVING FIXTURE, AXIAL RELIEF ............. 0 TO 0.250"
RADIAL RELIEF ............ 0 TO 0.100"

APPROX. FLOOR SPACE ........................... 86" x 60"
APPROX. MACHINE WEIGHT ....................... 3,200 LBS.

EQUIPPED WITH:
"PATHFINDER" 2-AXIS DIGITAL READOUT DISPLAY
MOTORIZED RELIEVING FIXTURE W/INFINITELY VARIABLE
SPEED PROVIDED BY SCR DRIVE
"PRECISE" HIGH SPEED INTERNAL GRINDING SPINDLE WITH
INDEPENDENT ELECTRONIC VARIABLE SPEED SPINDLE CONTROLLER.
I.D. SPINDLE IS MOUNTED ON VERTICAL COLUMN BEHIND THE
O.D. WHEELHEAD.
(6) CAMS WITH INDEX PLATES

MACHINE FEATURES:
TABLE SLIDES FREELY ON HARDENED ROUND WAYS & PRECISION
BALL BUSHINGS FOR EASY OPERATION & LONG LIFE. HANDWHEEL
IS OPERATED THROUGH A TWO-SPEED GEARBOX. COARSE FEED OF
3- 1/2" PER HANDWHEEL REVOLUTION. FINE FEED IS .134"
PER HANDWHEEL REVOLUTION.
SPINDLE ASSEMBLY IS MOUNTED ON A FRICTION FREE ROLLER
BEARING "X" & "Y" AXIS TABLE BASE.
"POPE" GRINDING WHEEL SPINDLE, 1 H.P. /3/60/230-460 VOLTS
MACHINE IS PRESENTLY WIRED FOR 460 VOLTS

SPECIAL NOTE:
G & L SOLD THE COMPLETE "WINSLOW" PRODUCT LINE IN 2001
TO FORMER WINSLOW ENGINEERS. THEY HAVE NAMED THE COMPANY
"WINSLOW ENGINEERING" & ARE LOCATED IN FOND DU LAC, WI.
THE WEBSITE FOR THEIR INFORMATION IS www.winsloweng.com.
THIS MACHINE IS OVER $60,000 NEW TODAY!


** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
*** EXCEPTIONAL CONDITION & APPEARANCE ***

FOR MORE INFORMATION: Call Andy at 973-497-7600
