J&L FC-30مناقل

بطاقة الهوية
227972
علامة تجارية
موديل
النوع
السنة
1959
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
148602

الوصف

30" Screen Jones & Lamson FC-30 OPTICAL COMPARATOR, Quadra Check 2000 DRO, Updated Power Elev., Reflec

المواصفات

تحويل المواصفات للمتري
ضياء. من الشاشة
30 "

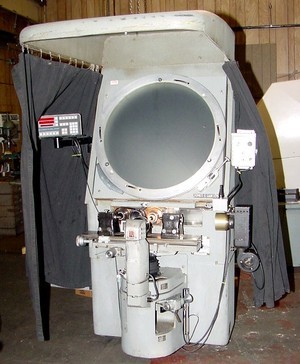

30" JONES & LAMSON OPTICAL COMPARATOR
& MEASURING MACHINE

**QUADRA-CHEK 2000 2-AXIS DIGITAL READOUT
w/PROGRAMMABLE GEOMETRIC FUNCTIONS **

MODEL: FC-30 S/N: 22529 NEW: 1959


SCREEN DIAMETER ................................................................... 30"
SIZE OF WORK TABLE ............................................................... 6" X 30"
TRAVEL OF WORK TABLE:
LONGITUDINAL ......................................................................... 8"
VERTICAL .................................................................................. 5"

ANGULAR MEASURING CAPACITY ............... 360 DEG. CHART ROTATION
HELIX ANGLE ADJUSTMENT (TABLE SWIVELS, L&R) ............. 15 DEG
CROSS TRAVEL FOR FOCUSING ............................................... 1- 3/8"
DISTANCE, LENS CENTERLINE TO TABLE:
MAXIMUM ................................................................................... 8- 1/4"
MINIMUM .................................................................................... 3- 1/4"

FLOOR SPACE (SMALL FOOTPRINT) ......................... 39"LR X 91"FB X 79"H
MACHINE WEIGHT ...................................................................... 2,500 LBS

EQUIPPED WITH:
QUADRA-CHEK 2000 2-AXIS DIGITAL READOUT DISPLAY
WITH PROGRAMMABLE GEOMETRIC FUNCTIONS
10X, 20X & 31.25X LENSES
SET OF J & L TAILSTOCKS
REFLECTION ATTACHMENT FOR SURFACE ILLUMINATION
UPDATED RECENTLY WITH POWER ELEVATION, VARIABLE
SPEED, WITH JOYSTICK
SINGLE PHASE/115 VOLT ELECTRICS


** INSPECT UNDER POWER IN HARRISON,NJ **
** EXCELLENT CONDITION & APPEARANCE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
