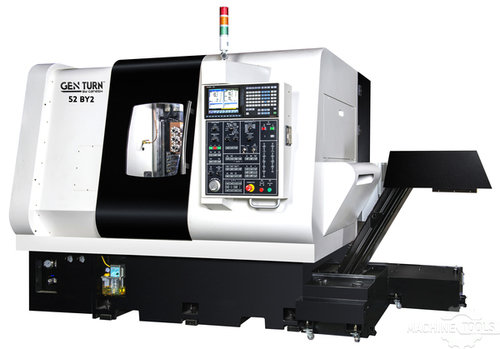

GANESH CYCLONE-52BY2المغزل متعددة ماكينات المسمار التلقائية

بطاقة الهوية
229809
علامة تجارية
موديل
حالة
الجديد في المخزن
السنة
2018
الموقع
California
الولايات المتحدة الامريكية
الثمن
Gen turn 52 by2
صور ( 10 )

الممزيد حول هذا النموذج

لعرض مزيد من المعلومات على GANESH CYCLONE-52BY2 ، بما في ذلك المعلومات التجارية، والصور، والفيديو، وأكثر من ذلك، انقر هنا .

بطاقة الهوية
229809
علامة تجارية
موديل
حالة
الجديد في المخزن
السنة
2018
الموقع
California
الولايات المتحدة الامريكية
الثمن

الوصف

B Axis CNC Mill / Turn Lathe,9 Axis, 2"(52mm) Bar Capacity, 36-Tool Positions with 18-driven tools, 12 for "B" Axis,15-HP Main Spindle and Subspindle, "B" Axis & "Y" Axis for both Front and Backworking.Combine Turning & Milling. • “B” Axis & “Y” Axis for both Front and Backworking • 36-Tool Positions with 18-driven tools, 12 for “B” Axis • Full size, full power, full-featured subspindle! COMBINE TURNING & MILLING FRONT & BACK FOR A FINISHED PART The CYCLONE 52-BY2 is an advanced multitasking 52mm (2”) bar capacity CNC mill/turn lathe suitable for machining complicated parts. The machine features integral (built-in) spindle motors for the main and subspindle. The main spindle and sub spindle can cut simultaneously for increased machining efficiency. The machine features ample tooling to complete the part in one operation or to have multiple parts setup on the machine, featuring 36 tool positions with 18-driven tools. The 18-driven ER-20 ½” collet spindle toolholders are included with the machine. The main spindle can machine in 5-axis (B, C, X, Y, Z) using up to 21-tools. The B-axis tooling unit houses 12- driven tools supported in ER-20 collet chucks, and 5-OD ¾” tools and 5-fixed 25mm ID tool positions. The subspindle can also machine in 5-axis (B, C, X, Y, Z) by sharing the B-axis tooling unit. It also has its own exclusive tools consisting of 3-radial live tools, 3-axial live tools, 4-fixed OD tools, and 4-fixed ID tools for a total of 14-tools with 6-driven tools exclusive to the subspindle for simultaneous production machining efficiency.

المواصفات

تحويل المواصفات للمتري
قطر ثقب عامود الدوران
2 "
القدرة
15 hp
الأبعاد
134” x 85” x 82” (WxDxH) including chip conveyor
الوزن
12,345 lbs
CNC تحكم
CNC (Mitsubishi M720L CNC Control)

MAIN SPINDLE
INTEGRAL BUILT-IN MOTOR SPINDLE
Maximum bar diameter Inch 2.008 (51 mm)
Collet size / Spindle bearings Type Traub TRB-52 / 5x90mm ball bearings, 3-front, 2-rear
Maximum spindle speed RPM 6,000 RPM (Integral Motor Spindle)
Servo Spindle motor horsepower Horsepower 15-HP (11kw) peak, 10-HP (7.5kw) 30-min. rated
X1, Y1, Z1 AXIS
X1, Y1, Z1 axis servo motor Horsepower X1= 1.3 hp (1.0kw) Y1/Z1= 2.0 hp (1.5kw)
X1 axis travel Inch 10.63” (270mm)
Y1 axis travel Inch 18.11” (460mm)
Z1 axis travel Inch 9.84" (250mm)
Minimum programmable input Inch 0.00004” resolution (0.001mm)
X1, Y1, Z1 rapid travel rate IPM 1181 IPM (30m/min) / 0.0001 mm resolution
MAIN SPINDLE TOOLING
(12 main spindle driven tools can be shared with subspindle)
Number of driven tools # 6 axial and 6 radial driven tools available
Driven tool motor power Horsepower 5-HP (3.5kw)
Driven tool spindle speed RPM 6,000 RPM maximum driven tool spindle speed
Driven tool collet size Size ER-20 collet spindles (up to 1/2” tool shank)
O.D. turning tools # 5 ¾” (20mm) O.D. turning tool holders available
I.D. boring tools # 5 1” (25mm) I.D. bores available for tool bushings
SUB SPINDLE
INTEGRAL BUILT-IN MOTOR SPINDLE
Maximum bar diameter Inch 2.008” (51 mm)
Collet size Type Traub TRB-52
Maximum spindle speed RPM 6,000 RPM (Integral Motor Spindle)
Servo Spindle motor horsepower Horsepower 15-HP (11kw) peak, 10-HP (7.5kw) 30-min. rated
X2, Y2, Z2 AXIS
X2, Y2, Z2 axis servo motor Horsepower X2/Z2 = 1.3 hp (1.0kw) Y2 = 2.0 hp (1.5kw)
X2 axis travel Inch 18.89” (480mm)
Y2 axis travel Inch 18.11” (460mm)
Z2 axis travel Inch 10.63" (270mm)
X2, Y2, Z2 rapid travel rate IPM 1181 IPM (30m/min)
Minimum programmable input Inch 0.00004” resolution (0.001mm)
Ballscrew diameter MM 25mm diameter with 10mm pitch for all axes
SUB SPINDLE TOOLING
Number of axial driven tools # 3 axial driven tools, uses ER-20 collets
Number of radial driven tools # 3 axial radial tools, uses ER-20 collets
Driven tool motor power Horsepower 2.7-HP (2.0kw)
Driven tool spindle speed RPM 6,000 RPM maximum driven tool spindle speed
Driven tool collet size Size ER-20 collet spindles (up to 1/2” tool shank)
O.D. turning tools # 4 ¾” (20mm) O.D. turning tool holders available
I.D. boring tools # 4 1” (25mm) I.D. bores available for tool bushings
COOLANT SYSTEM Gallons 80 Gallon tank, with three coolant pumps
ELECTRICAL REQUIREMENT Amps 208-220 vac, 3-phase, 60hz, 110 amps, 25 Kva
AIR REQUIREMENTS PSI 70 psi, 8-cfm, for parts catcher, ejector, oil mist unit
MACHINE WEIGHT Pounds 13,227 pounds (6,000 kgs)
MACHINE DIMENSIONS Inch 134” x 85” x 82” (WxDxH) including chip conveyor
SPECIFICATIONS AND PRICING ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE!
