GANESH GT - 3080 CNCحقل نفط ومخارط المغزل الجوف

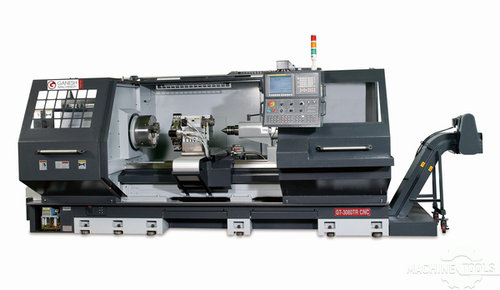

Gt 3080 cnc outside nl
صور ( 6 )

الممزيد حول هذا النموذج

لعرض مزيد من المعلومات على GANESH GT-3080 CNC ، بما في ذلك المعلومات التجارية، والصور، والفيديو، وأكثر من ذلك، انقر هنا .

الوصف

Oil Country Hollow Spindle CNC Lathes, GTW-30CNC with Upto 10" Spindle Bore, Front and Rear Spindle Standard. 30" Swing, 6 5/8" and 10" Bore Available, Front and Rear Chuck Mount Standard. Front & Rear A2-11 Chuck Mounts Included Available with Fanuc CNC Control. 6 5/8" / 10" Spindle Bore Rugged Meehanite Casting 8 Station Turret Standard Hardened and Ground Gears Built In Coolant System Heavy Duty Tailstock Standard Free In-House Training Thread Repair Function Standard on Fagor Controls Rear Spindle Standard

المواصفات

تحويل المواصفات للمتري
الأرجحة
30 "
المراكز
60 "
ثقب عامود الدوران
65 "
القدرة
25 hp
RPM
6 rpm
الأبعاد
LxWxH - 222” x 85” x 80”
الوزن
13,230 lbs
CNC تحكم
CNC (FANUC 0i-TD)

Capacity & Dimensions-
Swing over Bed 30” (760 mm)
Swing over Cross Slide 19” (480 mm)
Center Height 15” (380 mm)
Bed width of ways 18” (460 mm)
Bed Casting Height 15.75” (400 mm)

Spindle-
Spindle Motor Horsepower 30-HP Peak (25-HP 30-min. rated)
Spindle Drive Controller Yaskawa G-7 Varidrive
Spindle speeds - 6 -1,000 RPM
Spindle Gear Ranges - 2-automatically selected gear ranges 1.) 6-600 rpm / 2.) 10-1000 rpm
Spindle Bore 6.69” (170 mm)
Big-Bore Spindle Option (A2-15 spindle, 18-600 rpm in 2-ranges) 10” (255mm) optional
Spindle Nose (Front & Rear) / Bearing A2-11 / Taper Roller Bearing
Spindle weight capacity (Chuck only) 1,100 lbs (500kgs)
Spindle weight capacity (Chuck and Tailstock) 2,200 lbs (1,000kgs)
Spindle weight capacity (Chuck, Steady Rest and Tailstock) 4,400 lbs (2,000kgs)

Axis-
Rapid Traverse Feedrate X&Z 394 IPM (10m/min)
Cross slide travel 19 5/8” (500 mm)
Cross slide dimensions WxL 39” x 10” (1000mm x 258mm)
X-Axis Ball screw Diameter / Servo Motor Power 1.25” (32 mm) / 3.5-HP (2.5kw)
Z-Axis Ballscrew Diameter / Servo Motor Power 2” (50 mm) / 4.0-HP (2.9kw)

Tool Turret- Type LS-200R
Tool stations – any combination of ID/OD tooling /Index time 8-stations / 0.4 second index
O.D. Tooling 1” tools w/4-tool clamps provided
I.D. Tooling (40mm when specified for metric users) 4-ID (1.5” bore) holders provided
Tailstock- Air-Assist Manual Positioning - Quill engraved with inch / metric quill graduations
Quill diameter 3.5” (90 mm)
Quill stroke (manual quill advance, hydraulic optional) 7.87” (200 mm)
Quill taper MT-5 Morse Taper # 5
Electrical / Hydraulic / Coolant Systems
Power Requirements – FAGOR 8055iFL control, motors & drives 380-440vac, 33kw, 55amps
Power Requirements – FANUC 0i-TD control, motors & drives 208-220vac, 23kw, 73amps
Hydraulic Motor Power 2-H.P.
Hydraulic Pressure 500 PSI / Mobil #24 oil
Coolant Pump 3/4-HP
