GANESH VFM-2818مراكز التجهيز العمودي

بطاقة الهوية
231357
علامة تجارية
موديل
حالة
الجديد في المخزن
السنة
2018
الموقع
California
الولايات المتحدة الامريكية
الثمن
Genmill 2818
صور ( 4 )

الممزيد حول هذا النموذج

لعرض مزيد من المعلومات على GANESH VFM-2818 ، بما في ذلك المعلومات التجارية، والصور، والفيديو، وأكثر من ذلك، انقر هنا .

بطاقة الهوية
231357
علامة تجارية
موديل
حالة
الجديد في المخزن
السنة
2018
الموقع
California
الولايات المتحدة الامريكية
الثمن

الوصف

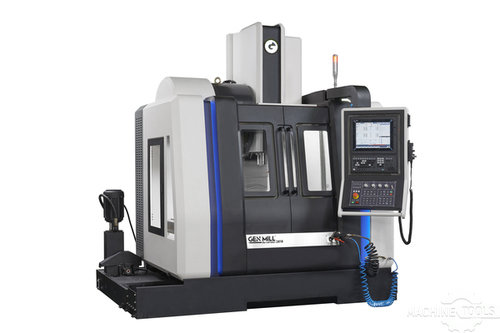

Vertical Machining Centers with 27.95" X Axis Travel, 24 High Speed Twin Arm ATC. Box Ways Maximize Tool Life on CNC Machining Centers VFM-2818. 12,000 or (15,000 Optional RPM) Inline Direct-Drive Spindle 15-HP spindle motor with Rigid Tapping Capability 1,417 IPM rapid rates in all three axis for fast production 24-Tool High-Speed Twin-Arm Tool Changer - CAT or BT #40 Tooling Cross-roller style linear way system for maximum cutting rigidity Massive Meehanite cast iron machine construction – 8,378 lbs. Prepared for “Through-the-Tool” coolant with rotary coupling Large axis travels for big work – 28” x 18” x 18” 4th and 5th axis wiring included with the machine

المواصفات

تحويل المواصفات للمتري
X
27.95 "
Y
17.72 "
Z
18.11 "
القدرة
15 hp
RPM
12000 rpm
# ATC
24
الجدول-W
16.53 "
الجدول-L
29.92 "
انحناء
CAT # 40
الأبعاد
LXWXH 97” x 91” x 101”
الوزن
9,260 lbs
CNC تحكم
CNC (Mitsubishi CNC Control)

AXIS TRAVEL
X-Travel 27.95” 710mm
Y-Travel 17.716” 450mm
Z-Travel 18.11” 460mm
Spindle Nose to Table Surface 5.11”– 23.62” 150 – 600mm
Spindle Center to Z-axis way covers 17.71” 450mm (throat dimension)

TABLE
Table Size (LxW) 29.92” x 16.53” 760mm X 420mm
T-slot width (3 T-slots total) 18 mm on 100mm centers
Max. Table Load (evenly distributed) 992 lbs 450kgs

SPINDLE
Spindle Motor – Mitsubishi Inline Direct-Drive 15-HP peak, 10-HP 10-minute duty-rated (11kw/7.5kw)
Spindle Speed 12,000rpm Direct-Drive (opt 24,000rpm Integral Spindle)
Spindle Torque 90 ft-lb @ 1,500 rpm
Tool Type CAT #40 Taper (BT #40 optional)
Spindle Taper Material / Hardness SCM415 / HRC58-62
Retention System / Holding Capability Bellville Spring Stack 1650-1760 lbs
Spindle Orientation By sensor
Spindle Runout 0.000040 T.I.R.
Spindle Bearing Front 110mm NSK 70BNR 10 x 2, P4 class-7 bearings
Spindle Bearing Rear 110mm NSK 70BNR 10 x 2, P4 class-7 bearings

AXIS FEEDS
Rapid Traverse X, Y, & Z 1,417 ipm 36m / minute
Cutting Feedrate 0.04 - 810 ipm
Axis Drive Motor Power – Z, Y 2-HP (1.5kw nominal) Mitsubishi HF154S-3000
Axis Drive Motor Power - Z 3.2-Hp (2.4kw nominal) Mitsubishi HF204B w/brake
Ballscrews – X, Y, Z 32mm ballscrews 16mm pitch
Maximum Thrust Force – Z 4408 lbs 2,000 kg
Constant Thrust Force – Z 2204 lbs 1000kg
Linear Positioning Accuracy (Renishaw) 0.0001”/12” 0.0025/300mm
Linear Positioning Repeatability (Renishaw) 0.00005” 0.0012mm

TOOL CHANGER
Tool Capacity (24+1) 24-Tool Hi-Speed Twin-Arm Tool Changer
Tool Shank CAT#40 Taper (BT#40 optional)
Tool Change Time (average) 1.7-seconds tool-to-tool, 2.1-seconds chip-to-chip
Maximum Tool Diameter / w/adjacent tool 5.90” / 3.15” 150mm / 80mm
Maximum Tool Length (from gage line) 11.81” 300mm
Maximum Tool Weight 15 lbs. 7kg
Tool Selection / Tool Access Random access Bi-directional

SPECIFICATIONS
Air Service Requirements 85 psi @ 5-scfm 7 Kg/cm2
Connected load electrical requirement 30kva, 208-220vac 60-Hz
Coolant Capacity 68-gallons 256 liters
Floor space requirements 87” x 79” x 93” 220x200x235cm
Shipping dimensions (L x W x H) 97” x 91” x 101” 237x219x256cm
Machine Weight 9,260 pounds 4,200 kg
Warranty – 1-year machine warranty 3-year Mitsubishi control, motors, & drive warranty
