WARNER & SWASEY 3A M-3500برج مخارط (رام والسرج)

بطاقة الهوية
232144
علامة تجارية
موديل
حالة
مستعملة - جيد
السنة
1979
الموقع
Texas
الولايات المتحدة الامريكية
رقم المخزن
Ref.#L630447

الوصف

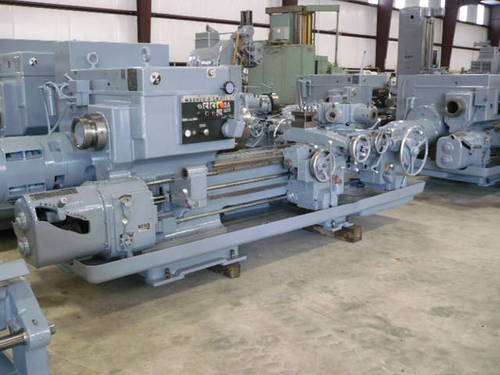

3 A Used Warner & Swasey Square Head Saddle TypeTurret Lathe Ref.#L630447 Model: M-3500 Lot 830 Serial No. 2843503 New: 1979

المواصفات

تحويل المواصفات للمتري
الأرجحة
24 "
نوع
Saddle
الأبعاد
180" X 83"
الوزن
17500 lbs.

3 A Used Warner & Swasey Square Head Saddle TypeTurret Lathe Ref.#L630447
Model: M-3500 Lot 830
Serial No. 2843503
New: 1979

Swing Over Bed Ways 23-1/2"
Swing Over Cross Slide Carriage 18"
Center Distance 43"
Spindle Hole 6-1/4"
Spindle Speeds 24 To 851Rpm's
Spindle Nose A-15
Chuck Size 21" 4-Jaw New
Feeds Cross .0025 To .082 I.P.R.
Feeds Long. .005 To .167 I.P.R.
Main Motor 40/20 Hp. 480 Volts
Flange Holders Short 2
Flange Holders Long 1
Weight 15,000 Lbs.
Floor Space 180" L. X 83" W.
Machine Height 64"
Coolant Yes
Tool Post 4 Way On Front Yes
Rapid Traverse Front And Rear Yes
Cross Sliding Rear Turret Yes

Condition Very Good
Note: Machine Will Have Rear Aprons And Rapid Traverse Box Reconditioned. New Filters And Oil. Machine Has Been Cleaned, Painted And Cycled. Machine May Be Seen Under Power With Proper Notice.

Price: Please Call
