TACCHELLA 612U, NEW 1973,المطاحن الأسطوانية العالمي

بطاقة الهوية
236170
علامة تجارية
موديل
السنة
1973
الموقع
New Jersey
الولايات المتحدة الامريكية
رقم المخزن
149885

الوصف

10" Swing 24" Centers Tacchella 612U, NEW 1973, OD GRINDER, HYD. TABLE, AUTO INFEED,

المواصفات

تحويل المواصفات للمتري
الأرجحة
10 "
المراكز
24 "
سرعة عامو دوران رأس الشغلة
600 RPM
قطر عجلة التجليخ
14 "

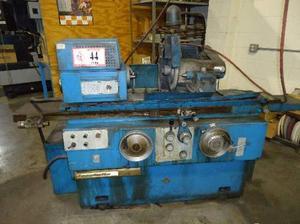

10" X 24" TACCHELLA "ITALIAN" PRECISION UNIVERSAL CYLINDRICAL GRINDER





MODEL: 612U         NEW: 1973



MAXIMUM SWING OVER TABLE............... 10"

DISTANCE BETWEEN CENTERS............... 24"



  TABLE:

TRAVERSE SPEED......................... 4" TO 276" I.P.M.

SWIVEL TABLE GRADUATED (DEG. INCLUDED

ANGLE)................................. 10 DEGREES





GRINDING WHEEL ........................ 14" DIA.

                                         2- 3/4" MAX. WIDITH

                                         5" HOLE

SWIVEL RANGE .......................... +/- 90 DEGREES

(2) GRINDING WHEEL SPINDLE SPEEDS...... 1640/1900 R.P.M.

INFEED HANDWHEEL, 1 GRAD. = ........... 0.0002"

AUTOMATIC INFEED @ TABLE REVERSAL,

  ON DIA. ............................. 0.0005" TO .002"





  MOTORIZED WORKHEAD AND TAILSTOCK:

  WORKHEAD SPINDLE SPEEDS .............. 30 TO 600 RPM

WORKHEAD TAPER......................... #3 MT

DIA. OF HOLE, WORKHEAD SPINDLE......... 1- 7/16"

WORKHEAD SWIVEL RANGE.................. +/- 90 DEGREES

TAILSTOCK TAPER........................ #3 MT

TAILSTOCK STROKE ...................... 3/4"



APPROX. DIMENSIONS .................... 64" X 60" X 70"H

APPROX. WEIGHT ........................ 5,200 LBS.



MACHINE FEATURES

HYDRAULIC OPERATION FEATURING:

-SINGLE LEVER AUTO CYCLE CONTROL

-AUTO TABLE TRAVERSE

-AUTO INFEED

DUAL LIVE/DEAD HEADSTOCK SPINDLE

14" GRINDING WHEEL PRESENTLY ON MACHINE

INFINITELY VARIABLE ELECTRONIC SPEED CONTROL FOR WORKHEAD

LUBRICATION SYSTEM

COOLANT SYSTEM

MOTORS ON MACHINE ARE DUAL VOLTAGE (220/440 VOLTS)





SPECIAL NOTE:

ITALIAN BUILT MACHINE, SUPERIOR QUALITY! **



** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **







FOR MORE INFORMATION: Call Andy at 973-497-7600
