THIS IS A MAKINO/CINCINNATI STYLE TOOL & CUTTER GRINDER
THAT WAS FACTORY FITTED WHEN NEW WITH A FANUC CONTROL. SHOULD BE

MORE VERSATILE AND SERVICEABLE THAN WALTER, AMCO STYLE.

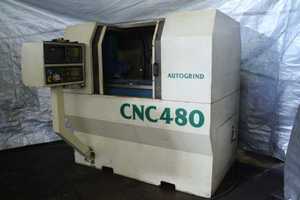

MAKE: AUTOGRIND
MDL: CNC 480
SWING OVER TABLE: 10"
LENGHT BETWEEN TAILSTOCK AND WORKHEAD: 21-1/2"
FACE MILLS USING FACE MILL GRINDING ATTACHEMENT DIA: 18"
FORMED CUTTERS (USING 6" WHEEL) DIAMETER: 10"
TABLE SIZE: 5" X 36"
X-TRAVEL: 16"
Y-TRAVEL: 10"
Z-TRAVEL: 10-1/2"
TABLE SWIVEL 180 DEG.
TABLE TAPER PER FOOT ON DIAMETER: 5"
FINE ADJ. TAPER PER FEET ON DIAMETER: 2"
TABLE GRADUATIONS IN CENTER 90 DEG.
MAX. DISTANCE CENTERLINE OF SPINDLE TO TABLE: 13-1/2"
SPINDLE TILTS ABOVE AND BELOW CENTER 15 DEGREES
SWIVEL MOVEMENT OF GRINDING WHEEL SPINDLE 360 DEGREES
SPINDLE SPEEDS
6" WHEEL, SURFACE SPEED 6,022 FT./MIN. 3,834 RPM
3" WHEEL, SURFACE SPEED 5,887 FT./MIN. 6,425 RPM
C AXIS WORKHEAD SPINDLE 360,000 INCREMENTS

FEATURES:
TILTING WHEELHED (15 DEG. ABOVE AND BELOW)
BALL BEARING ANTI-FRICTION TABLE ROLLING IN REPLACEABLE HARDENED

STEEL V WAYS
360 DEG. ECCENTRIC WHEELHEAD AND SWIVEL TABLE WHICH CAN INCREASE

SPECIFIED CROSS RANGE BY 70%
CAST IRON CONSTRUCTION
1HP, 3/60/230/460
VOLTS SPINDLE MOTOR PRESENTLY WIRED FOE 3/60/220 VOLTS
FANUC O-M CONTROL
RIGHT SIDE AVELARY SPINDLE

MACHINE DIMENSIONS: 75"L, X 75"W, X 72"H
APPROX WEIGHT: 5000 LBS.

**SPECIFICATION SHOWN ARE TO
BE USED AS A GUIDELINE ONLY.
IT IS THE CUSTOMERS RESPONSIBILITY
TO CHECK SIZES AND FEATURES BEFORE
PURCHASING. WE WILL NOT BE RESPONSIBLE
FOR ERROR OR OMISSIONS.

Price: $ 9,500
